H801RC H802RA H803TC Artnet Ethernet to SPI Pixel Controller 4CH/8CH

H801RC 8192Pixels LED Controller

Features:

1. High Pixel Control: Supports up to 8192 pixels with a maximum of 1024 pixels per port across eight ports.

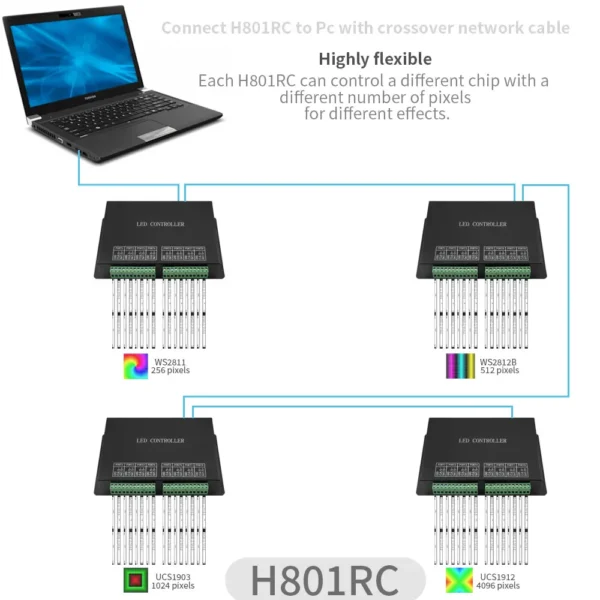

2. Flexible Operation: The H801RC can operate online or offline, and it can easily be connected to a PC or Master Controller for seamless control.

3. Precision Grayscale Control: Provides high-quality control with precise grayscale management for a smooth visual experience.

4. Long Transmission Distance: Built on the standard Ethernet protocol, it can transmit data up to 100 meters, offering extensive flexibility in installation.

Specifications:

• Input Voltage: Customized

• Power Consumption: 1W

• Pixel Drive Capacity: 8192 pixels

• Weight: 1KG

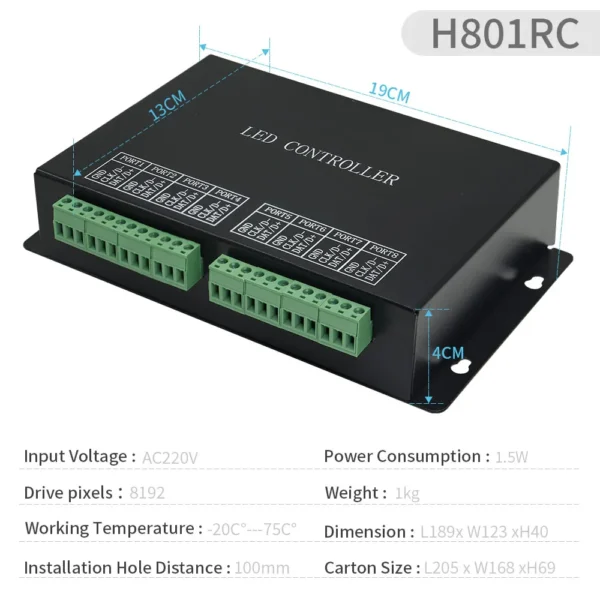

• Dimensions: L189 x W123 x H40 mm

• Carton Size: L205 x W168 x H69 mm

Supported Chips:

The H801RC supports a wide variety of chips, ensuring compatibility with numerous LED modules and controllers. Supported chips include, but are not limited to:

• LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889

• DMX512, APA102, P9813, WS2801, WS2811, WS2812, TM1803, TM1812

• UCS1903, UCS1909, UCS1912, SM16716, TLS3001, TLS3002

Note: H801RC supports additional chips beyond the listed models. For example, UCS2903 shares a sequence diagram with UCS1903 and is fully supported.

Working Mode:

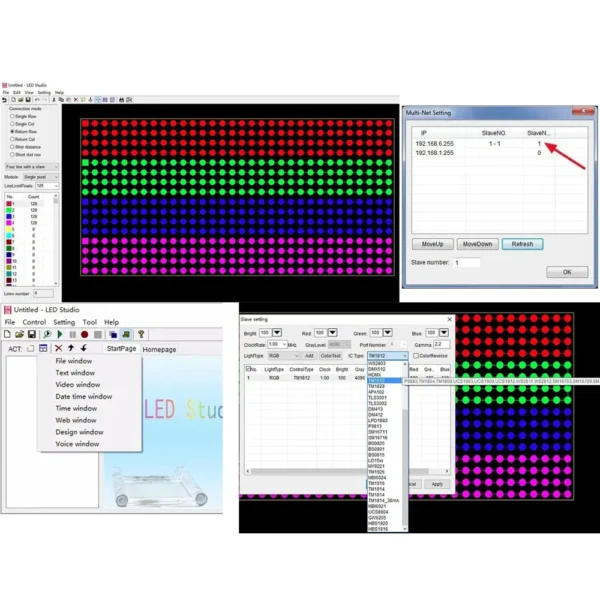

1. Offline Mode: When connected to a master controller, the H801RC can operate without a computer. It works with LED Build software to configure settings.

   • LED Build Software Download: Download LED Build

   • LED Build Tutorial Video: Watch LED Build Tutorial
