H807SA 8CH LED Controller DMX512 Art-Net SPI WS2811 WS2812B 5-24V

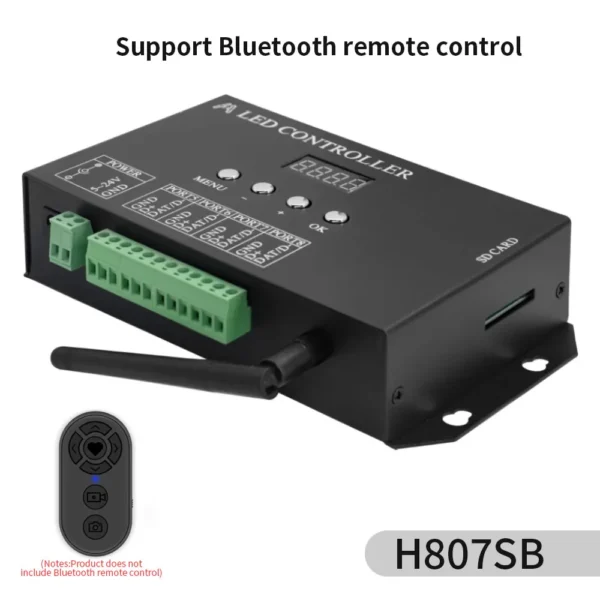

H807SB WIFI SPI LED Controller

1. Introduction

The H807SB is an advanced Wi-Fi enabled version of the H807 series. The V3 model introduces Bluetooth remote control capabilities, with four output ports supporting up to 4096 pixels. With a flexible input voltage range of DC 5-24V, the H807SB allows users to control LED configurations through a mobile app, webpage, or via Bluetooth.

The H807SB is optimized for wireless synchronization across multiple controllers and includes compatibility with various LED driver chips, such as DMX512, WS2812, TM1809, UCS1909, and more.

Controllable LED Driver Chips:

• DMX512, UCS1903, WS2811, WS2812, WS2813, TM1809, SM16703, P943, and many others.

Supporting Software:

• LED Programming Software version V5.03 or above.

Note: Bluetooth remote control is an optional purchase and is not included by default.

2. Performance Characteristics

• Four Output Ports: Control up to 4096 pixels.

• SD Card Support: Compatible with FAT32 and FAT16 formats, supporting up to 64 DAT files.

• Mobile Control: Use your phone to switch files, adjust speed, brightness, and set playback settings.

• WIFI Mode: Configure the Wi-Fi working mode and control via the web interface.

• Wireless Synchronization: Sync multiple controllers over Wi-Fi.

• DMA Console via Wi-Fi: Supports RGBW, file replacement, and quick adjustments of speed and brightness.

• Point Tracing: Supports online point tracing and offline point counting.

• Firmware Upgrades: Supports online updates for continuous improvement.

• Bluetooth Remote Control: Optional Bluetooth remote control for easy management (available separately).
