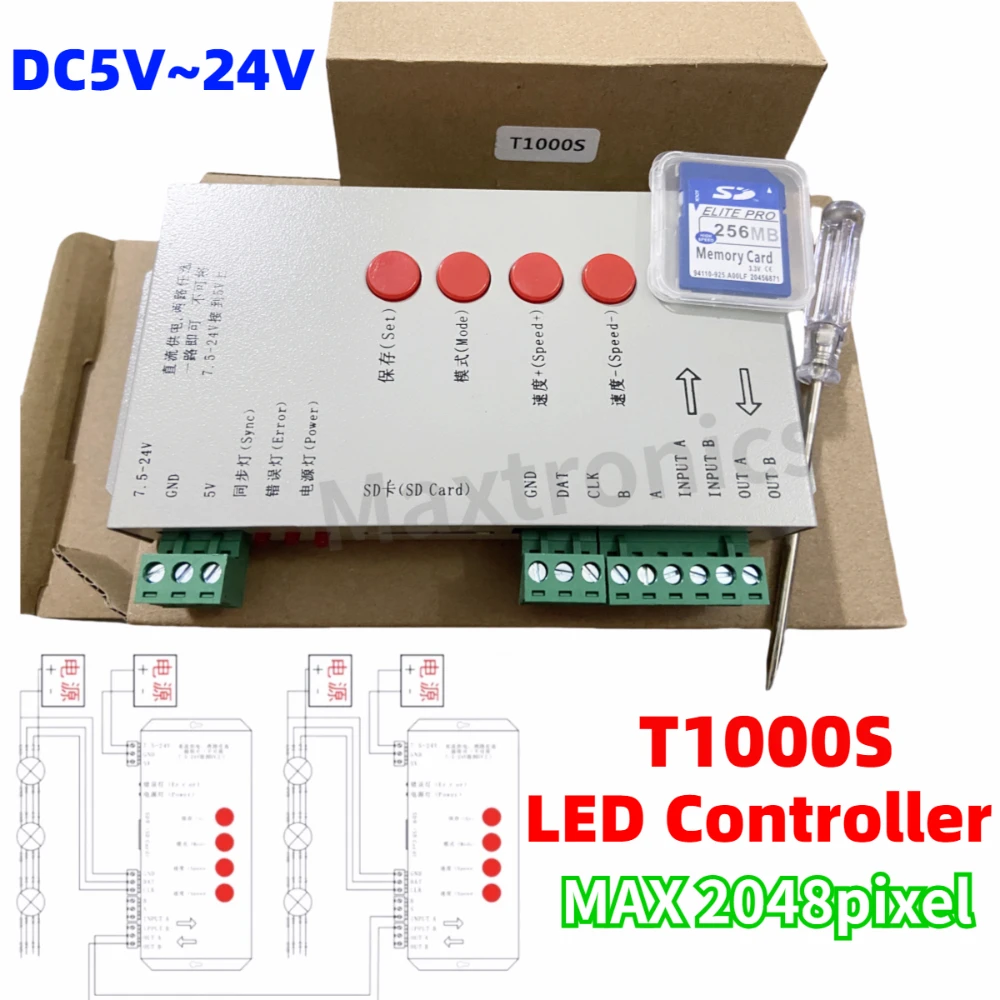

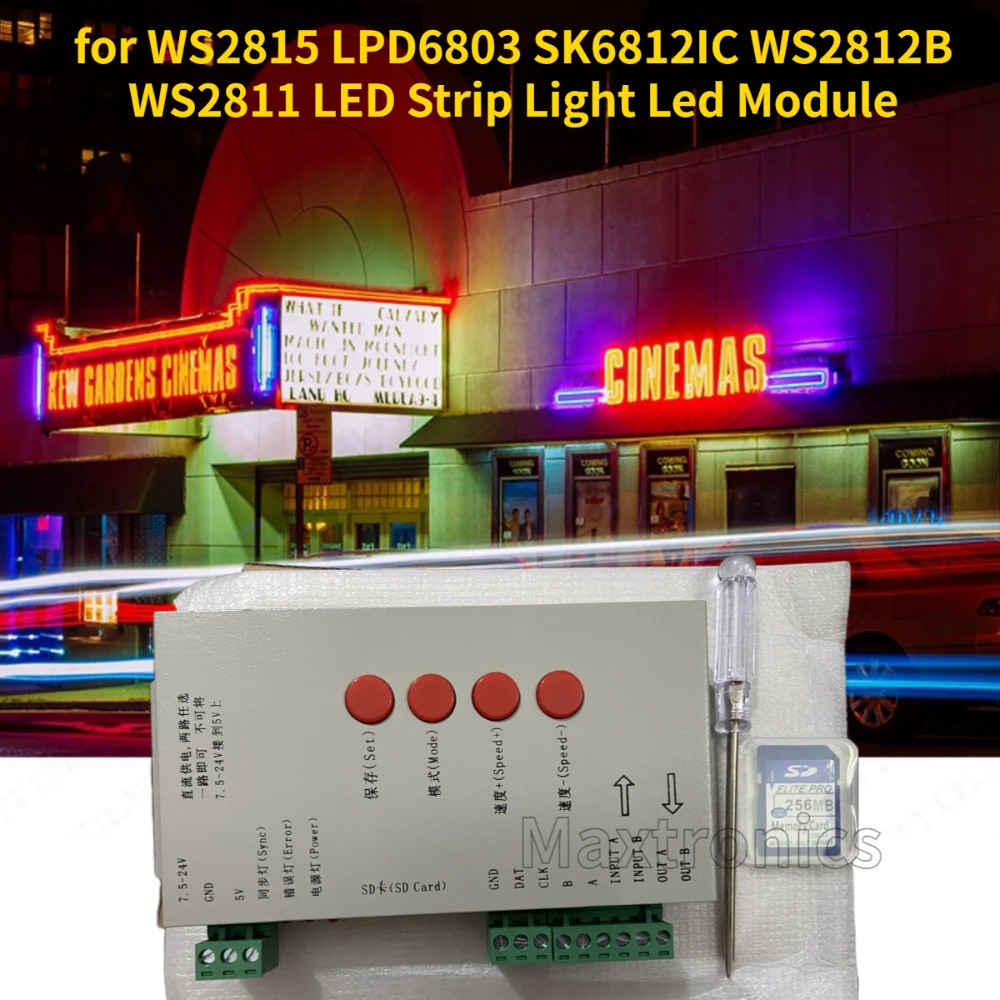

T1000S LED Controller Max 2048 Pixels for WS2815 LPD6803 SK6812IC WS2812B WS2811 LED Strip Light

Description:

• Type: SD card
• Capacity:256MB
• Store file:*.led

Physical parameters:

• Working temperature: -30 to 85 degrees Celsius
• Working voltage: DC5V / DC7.5-24V
• Working power: 2W
• Weight: 0.3kg
• Size: L165mm×W80mm×H30mm
• Signal port: 3-pin connect port

T-1000S System features:

1. 2048 Pixels capacity.
2. 256 Gray, Gamma correction processing software.
3. Support the rules and special-shaped handles.
4. The controller, a port output, may bring 1024/2048 light.
5. Off-line control, play back content stored in the SD card
6. T-1000C stores a maximum of 16 documents

NOTE:

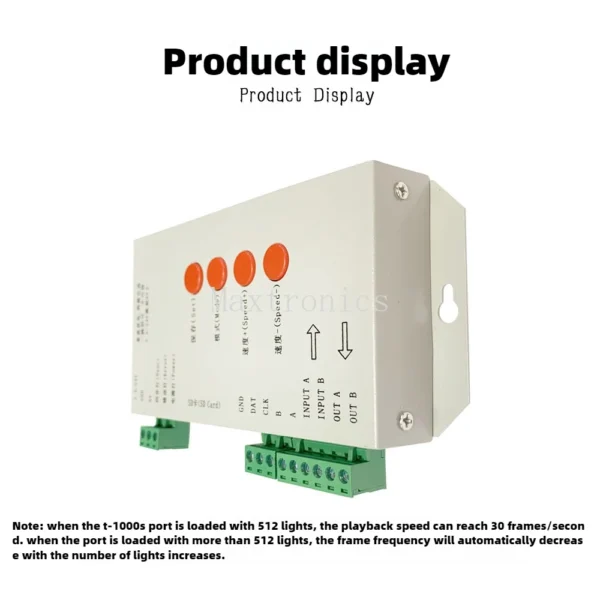

• When the T1000S controller load is less than 512 pixels, the frame rate can reach 30fps.
• When the T-1000S controls more than 512 pixels, the frame rate will slow down automatically

Only work with LEDEdit 2014 Software!

Package:

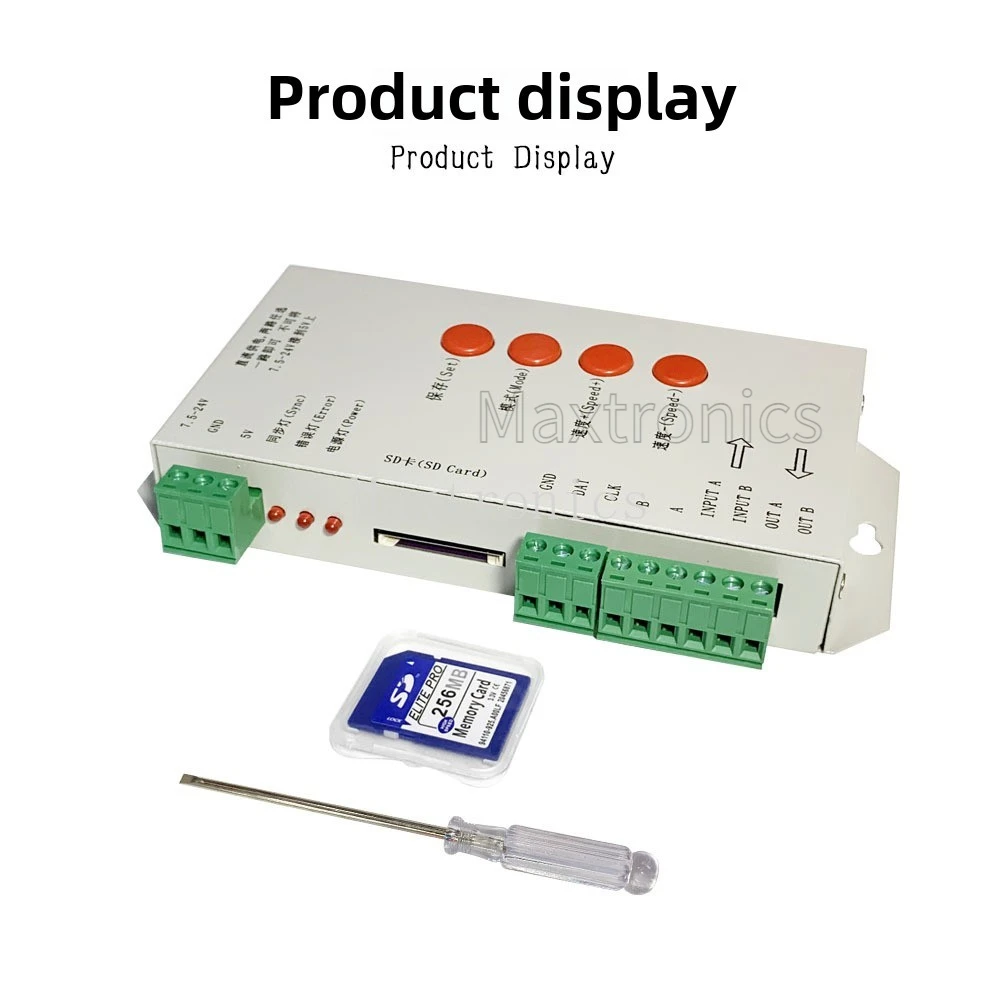

• 1x T1000S controller
• 1xSD Card(256MB)

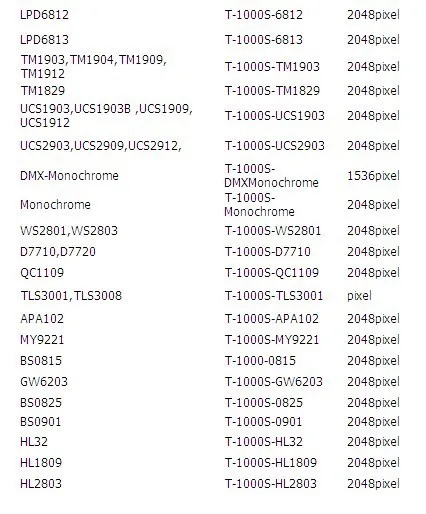

Support IC (one IC symbolizes a pixel point )

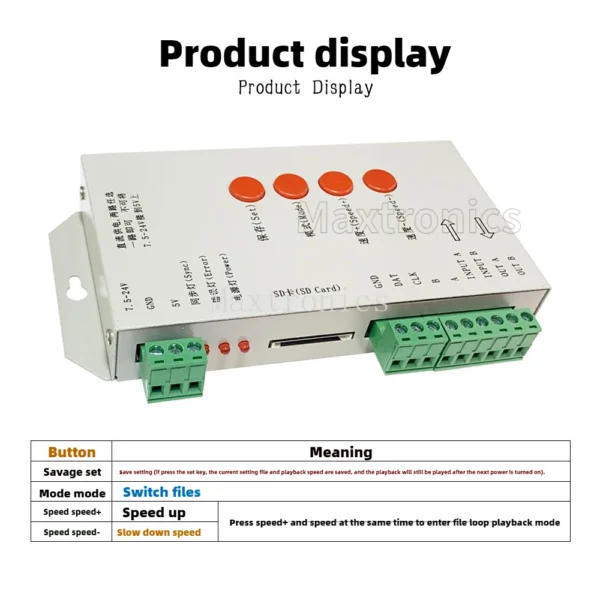

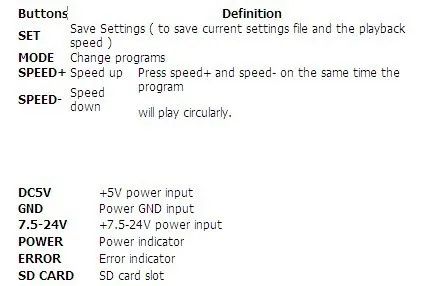

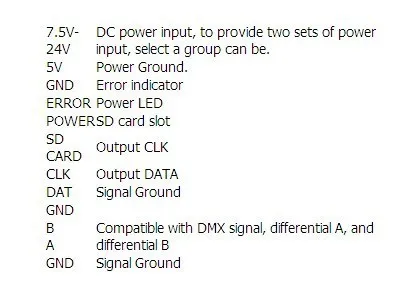

 Definition of buttons

Regulatory function button:

Note:

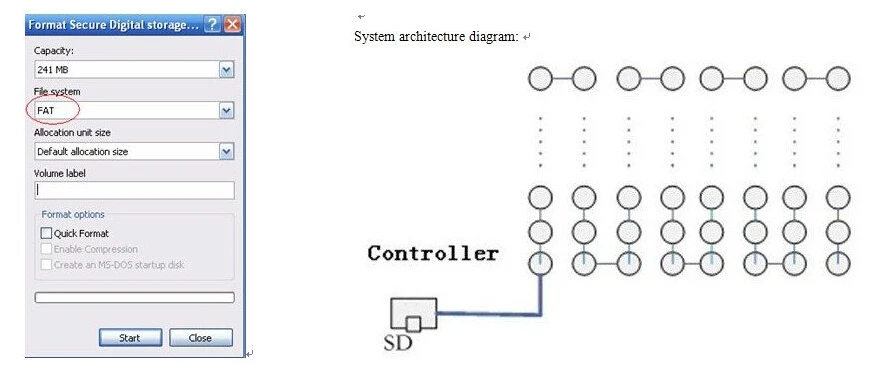

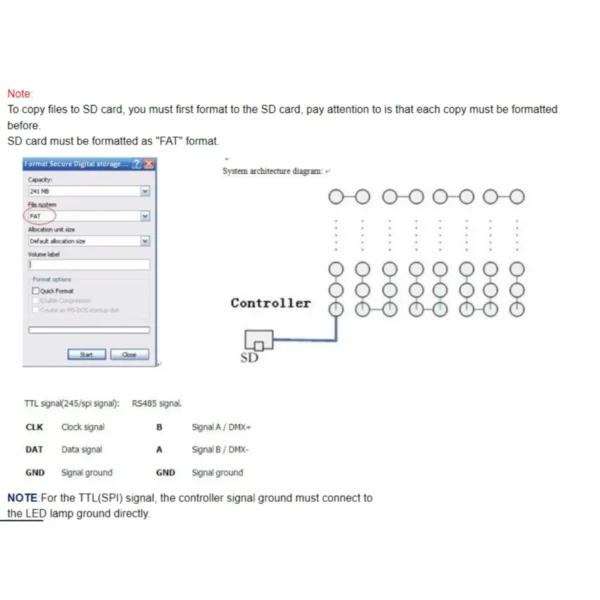

• To copy files to an SD card, you must first format the SD card, and pay attention to the fact that each copy must be formatted before.
• The SD card must be formatted in “FAT” format.

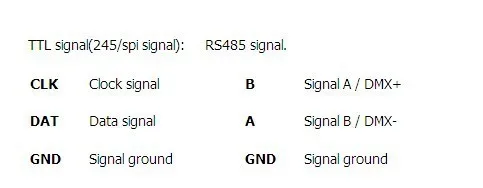

NOTE: For the TTL(SPI) signal, the controller signal ground must connect to

The LED lamp is grounded directly.
