U’King 2000W Double-tube Adjustable Fog Machine DMX512 Smoke Machine 3IN1 RGB LED Colorful Stage Spray for DJ Wedding Christmas

Specifications:

• Color: black
• Material: Aluminum alloy structure/plastic shell
• Voltage: AC110V/220V50/60HZ (according to the region)
• Power: 2000W
• Lamp beads: 8+8 3W RGB 3 in 1 LEDs
• Smoke spray angle: adjustable
• DMX Channel: 13CH
• Control model： remote control, DMX512 console, manual screen control (Light color change can be controlled by remote control or manual screen; using the DMX512 controller can realize the program automatically color change)
• Warm-up time: 3 minutes
• Heating time: it takes 1 minute to heat up for the first time, and 30-40 seconds for subsequent use.
• Oil drum capacity: 2.5 liters (about 1h continuous spraying)
• Spraying distance: about 8 meters
• Protection grade: IP30
• Working environment:-10℃-45℃
• Remote control distance:10-30M
• Smoke spraying height:3-5M

Product Features:

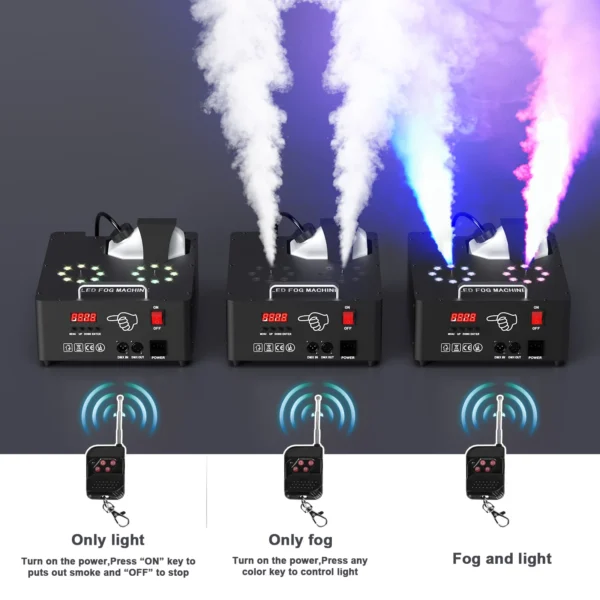

1. Configure two sets of 8+8 3-in-1 LED beads; you can mix any color.

2. Two sets of LED beads can emit different colors.

3. Adjustable angle of smoke spraying, can spray in any direction (with nozzle adjustment needle) .

4. Upside-down air column smoke machine.

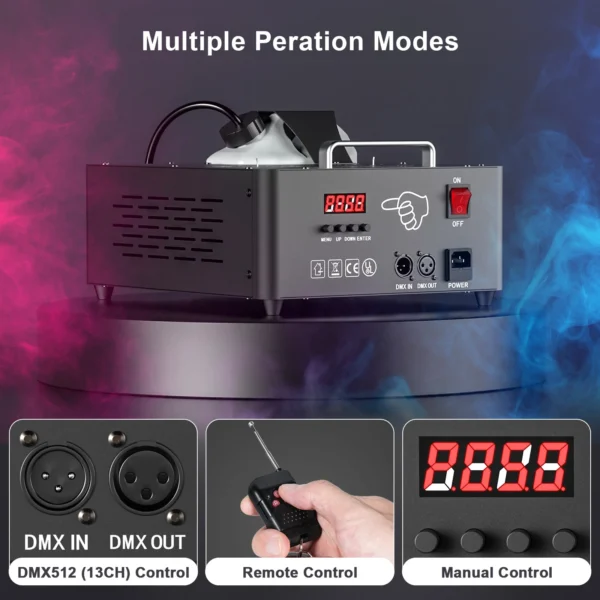

5. Remote control, DMX512 console control, or manual control through the display.

6. LCD display control, more intelligent and easier to use.

Attention:

Please obey all notices about the operation. Safety and repair to avoid getting an electric shock and maintain the excellent effect.

1. Keep clean.

2. Use indoors.

3. The power must same as located.

4. Power off before adding fogger liquid.

5. Put in the horizontal direction and don’t incline, and place upside down.

6. Power off or pull out the plug after use.

7. No waterproof, if there is some humidity, water, or fog liquid in it, please switch off the power and contact the distributor as soon as possible.

8. There are no spare parts with the machine. If you need to repair it, please contact the distributor or a professional repairer.

Avoid fire:

1. Only for adults to operate. Equip it with the touch of children and pay more attention during operation.

2. Don’t spray it on people directly and far away from fire.

3. The temperature of the smoke is very high, so keep the space between the machine and other material things more than 100cm.(Surface temperature of the machine is 40-80℃， don’t touch)

4. Put the machine in a drafty place and don’t cover the cool holes to keep the best cool effect. Keep the space between the fog machine and around things more than 20cm, and between the smoke machine and tinder more than 20cm. And without easily burnt things within 300cm（far away carpet, board & inflammable）.

Avoid explosion:

1. Don’t add tinder liquid such as oil, gas, perfume, etc. to the fog machine.

2. Pay more attention to all notice signs and operation instructions on all machines.

3. Please use the high-quality fog liquid recommended by distributors. Bad quality fog liquid may get blasted or sprayed with oil.

4. Often check whether there is enough fog liquid.

5. Get out all fog liquid before transport or post.

6. Don’t eat fog liquid; otherwise to see the doctor immediately. Use clean water to wash skin and eyes once the fog liquid touches them.

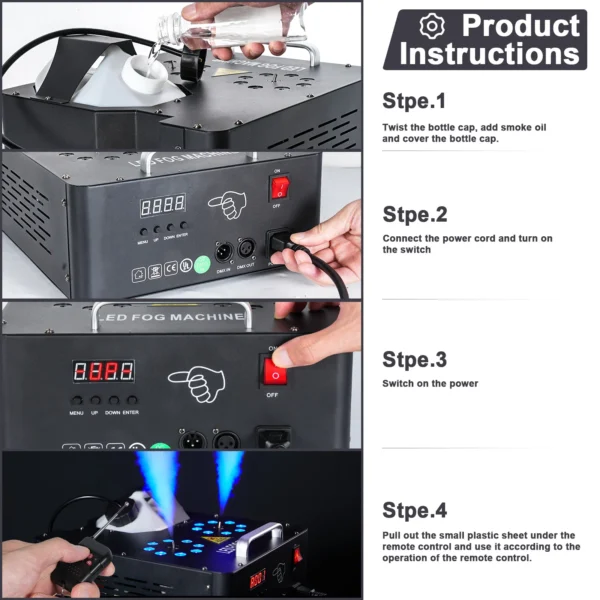

Installation:

1. Take away all packing material, especially the spray mouth.

2. Set in the horizontal direction and open the cover of the liquid can.

3. Add high-quality fog liquid to the machine and screw the cover of the liquid can. Bad-quality fog liquid will damage the fog machine

4. Plug the plug of the remote console into the socket on the back of the machine.

Repair:

1. Please clean the fog machine timely manner to avoid damage to spare parts and decrease the repair charge.

2. Don’t let the fog machine be dirty. Screw the cover of the liquid can after adding fog liquid.

3. After about 40 hours of continuous use, please use 80% distilled water and 20% vinegar to clean the dirt in the refractory pipe.

4. Disassemble the spray mouth and use vinegar to clean it to keep it expedited before heat.

5. Reequip the spray mouth after it cools and add fog liquid for next use.

Packaging List:

• Fog machine * 1
• Power cord * 1
• Signal line * 1
• Remote control * 1
• Cone needle * 1
• Instruction manual *1
