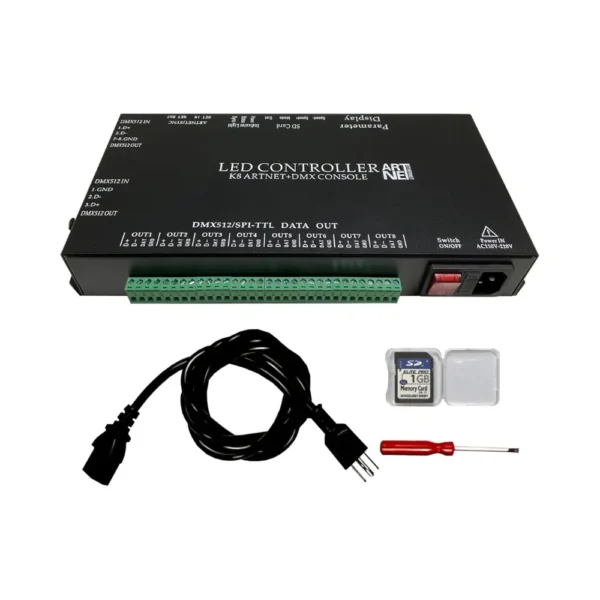

K8 ARTNET + DMX Console LED Controller

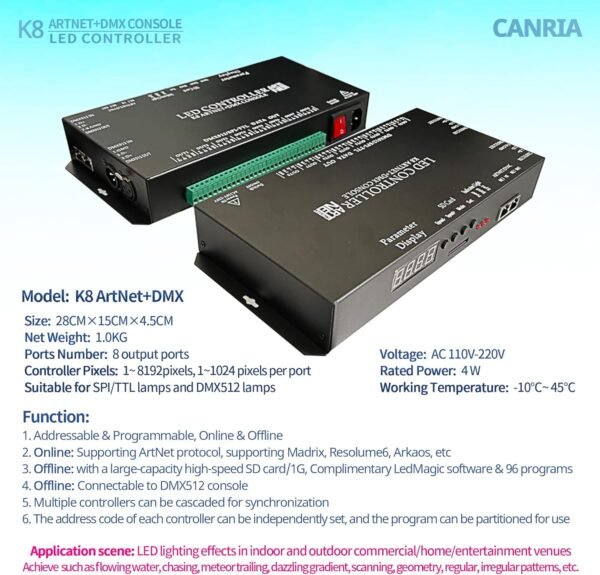

The K16 LED Controller is a professional multi-protocol lighting control system designed for SPI and DMX512 LED installations. It supports offline playback, DMX console integration, and Art-Net network control with reliable synchronization across multiple units.

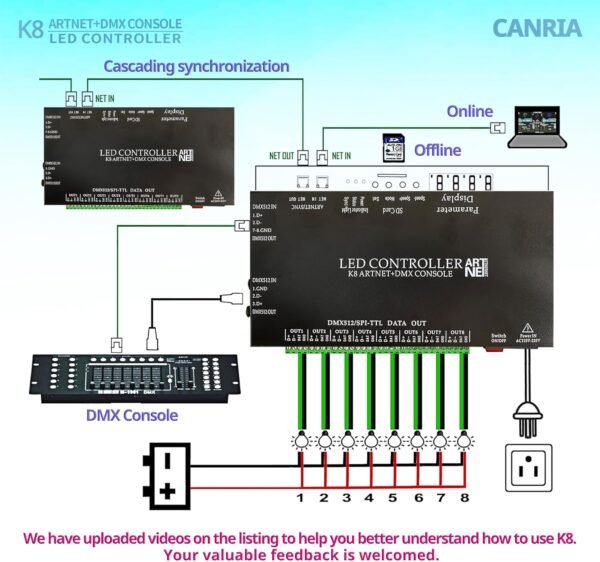

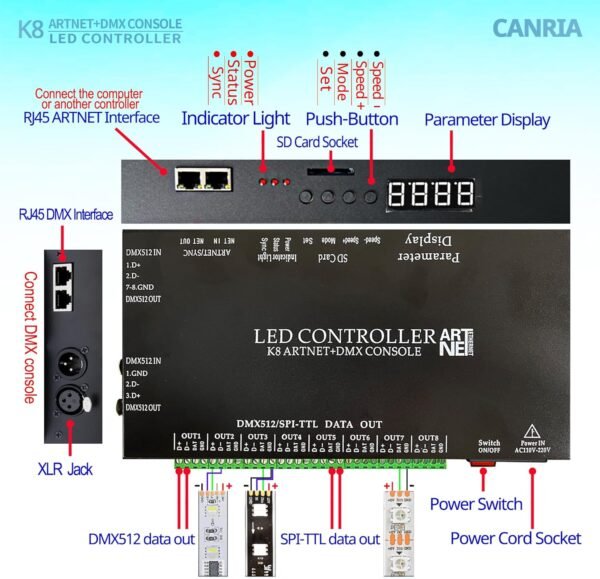

Wiring & Connection Guide

Proper wiring ensures stable and accurate operation:

• Power & Ground Connection:
  Connect GND of LED lamps to GND of the controller
• SPI Signal Connection:
  • LED DAT → Controller DAT
• DMX512 Signal Connection:
  • A → D+ of controller
  • B → D− of controller
• Controller Synchronization (Cascading):
  Connect multiple controllers via a network cable for synchronized operation
• Network Series Connection:
  • ARTNET NET OUT (Controller 1) → ARTNET NET IN (Controller 2) → continue chain
• Parallel Connection Options:
  • Use DMX512 IN (network port)
  • Or standard XLR interfaces

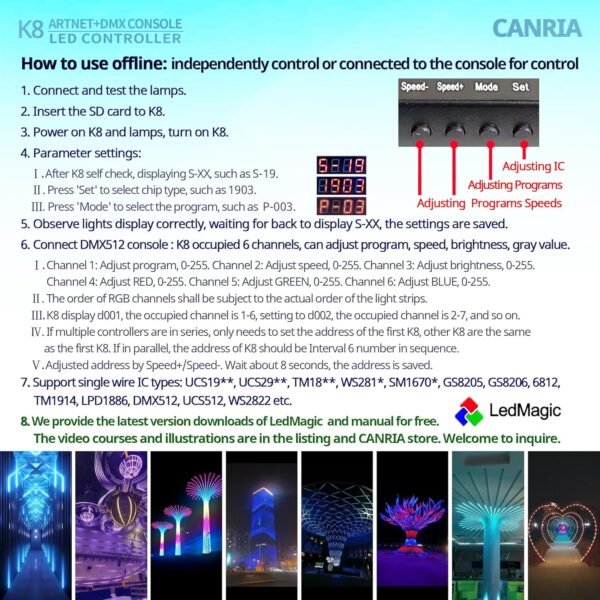

Offline Operation Mode

Standalone playback without a computer:

1. Insert SD card into the controller
2. Power ON controller and LED fixtures
3. Display shows S-XX (speed mode):
   • S-00: Slowest playback
   • S-99: Fastest playback
   • Adjust using Speed + / Speed − buttons
4. Press SET to select IC type (SPI / DMX512 supported)
5. Press MODE to select program:
   • Programs range from P-01 to P-96
   • A-01: 96-program loop mode

DMX512 Console Control Mode

Integration with professional lighting consoles:

1. Insert SD card
2. Connect controller via DMX512 or XLR interface
3. Power ON system
4. Display shows d001 (starting address)

DMX Channel Functions (6 Channels Total):

• Channel 1: Program selection
• Channel 2: Speed control
• Channel 3: Brightness
• Channels 4–6: Red / Green / Blue control

Multi-Controller Setup:

• Series connection: configure only the first controller
• Parallel connection: assign addresses in intervals of 6 (e.g., d001, d007, d013…)

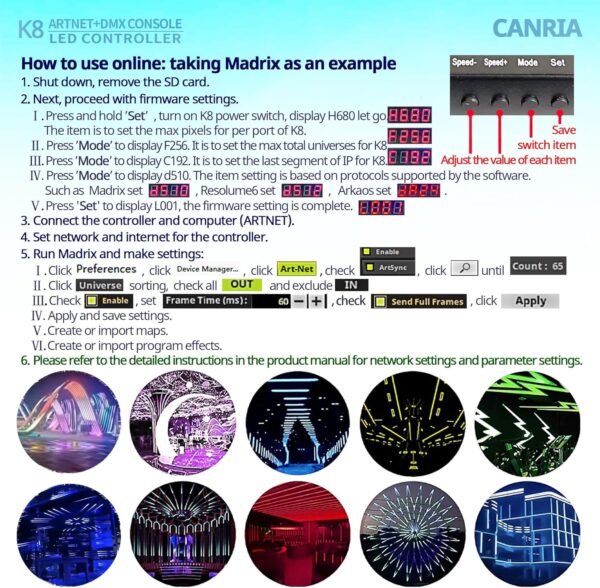

Online (Art-Net) Operation

Control via computer and network:

1. Connect PC to ARTNET NET IN of the first controller
2. Configure network settings manually:
   • Set a unique IP address (avoid conflicts)
3. Adjust controller parameters (first unit only)
4. System supports real-time control via compatible software

🔹 Supported LED IC Chipsets

Compatible with a wide range of LED driver ICs:

UCS1903, 1912, 2903, 2909, 2912
TM1803, 1804, 1809, 1812, 1814, 1914, 1934
SM16703, 16716
WS2811, WS2812, WS2822
GS8205, 8206
DMX512, 9813, 5109, 8109, 2801, and more

Multi-Controller Synchronization

• Supports cascading multiple controllers for large installations
• Only the first controller requires configuration
• All controllers must have:
  • SD card inserted
  • Same program files
  • Matching pixel and speed settings
• Programs with the same index run synchronously across all units

Professional Summary

The K16 LED Controller delivers a robust and scalable solution for advanced lighting systems, supporting SPI and DMX512 control, offline playback, and Art-Net networking with precise synchronization and broad IC compatibility.

It is ideal for:

• Stage lighting systems
• Architectural LED installations
• Media facades
• Entertainment venues
• Large-scale synchronized LED projects
