Description
♥ Applications:
1. PCB board manufacturing industry
2. LED products, motors, and DC fans test,
3. Electrofacing, electrolysis, and electronic components ageing
4. Laboratory, Electronic equipment, Automatic Test Equipment
5. All other occasions need to use a DC Power Supply

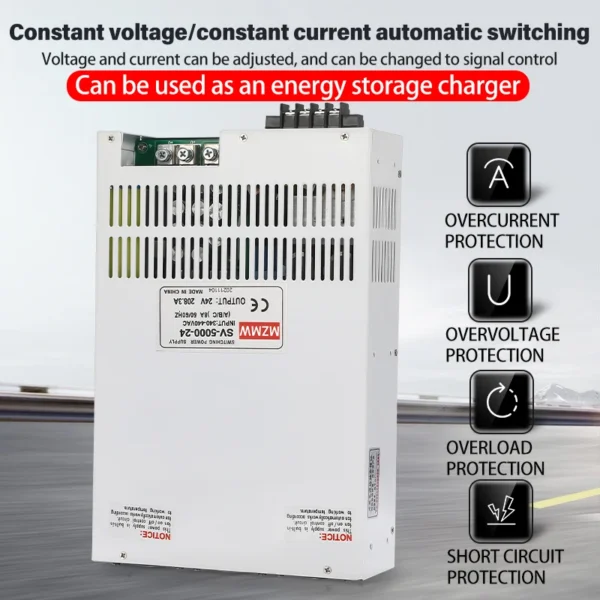

♥ Protection function:
1. Overvoltage protection
2. overload protection
3. over temperature protection(>90° close the output)
4. current limitation protection
♥ Features:
1. constant voltage and constant current operation (C.C. and C.V. automatic conversion)

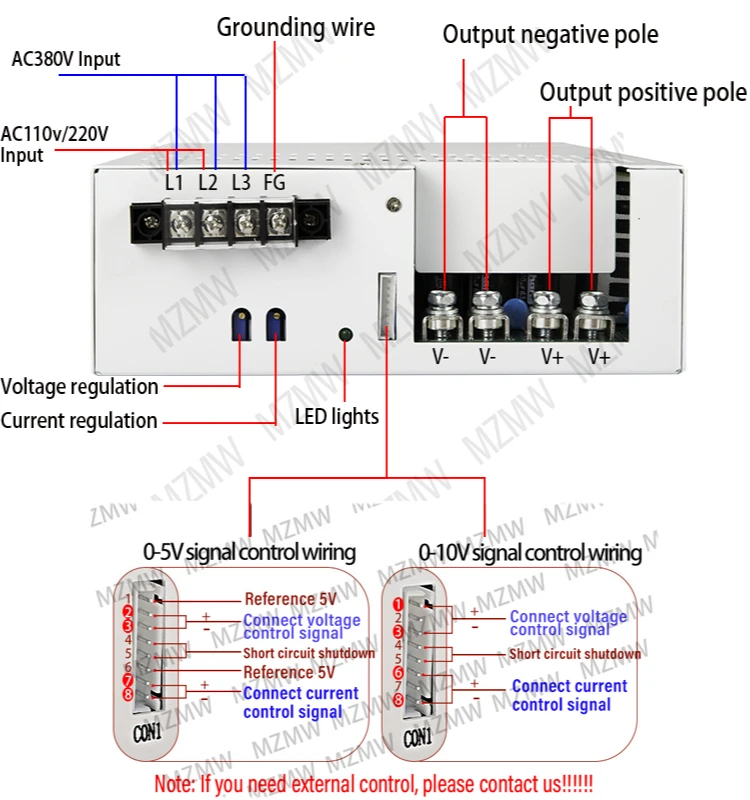

2. Both current and voltage can be adjusted from 0 to the rated value

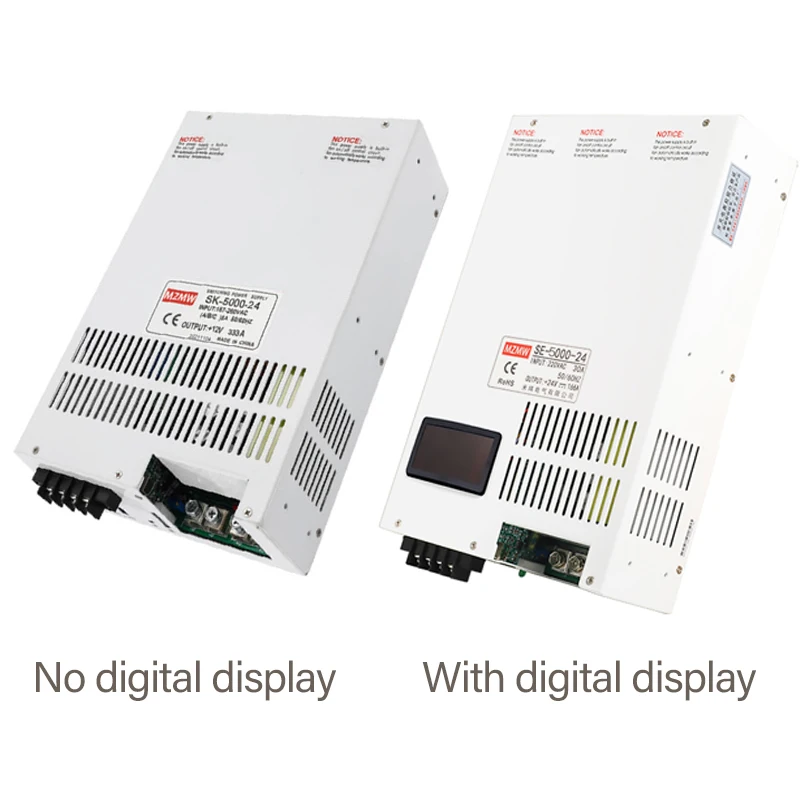

3. LED digital display(Optional)

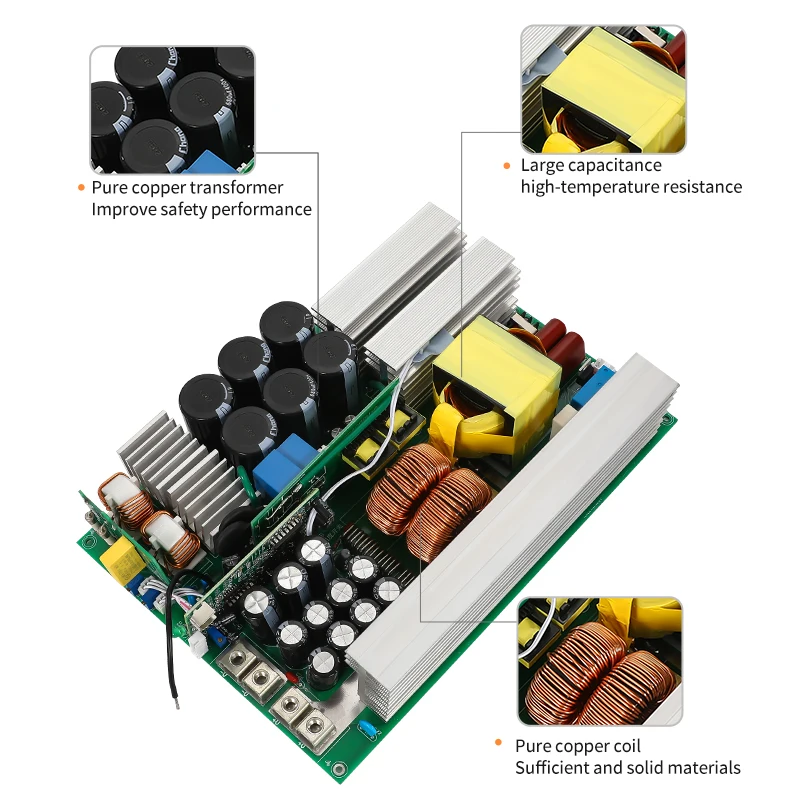

4. Built-in EMI filter.(have anti-interference circuit)

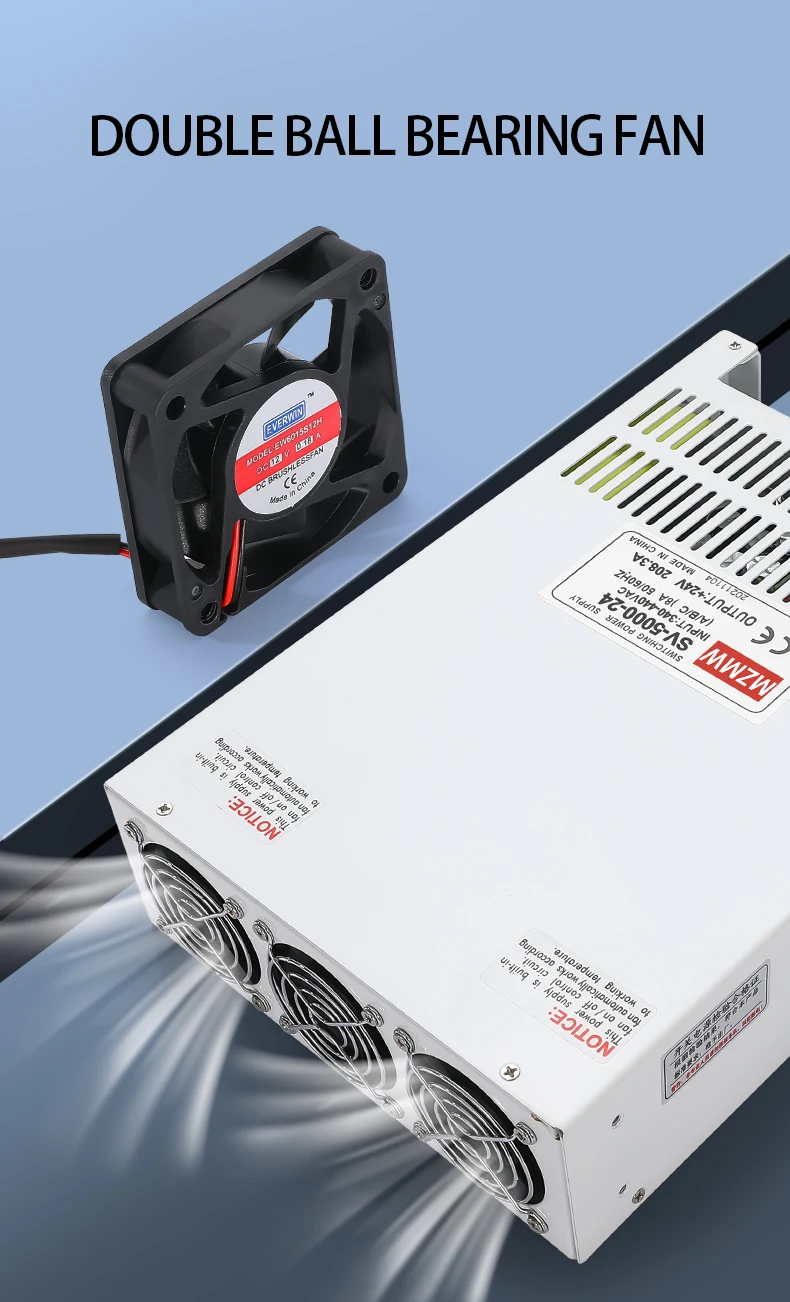

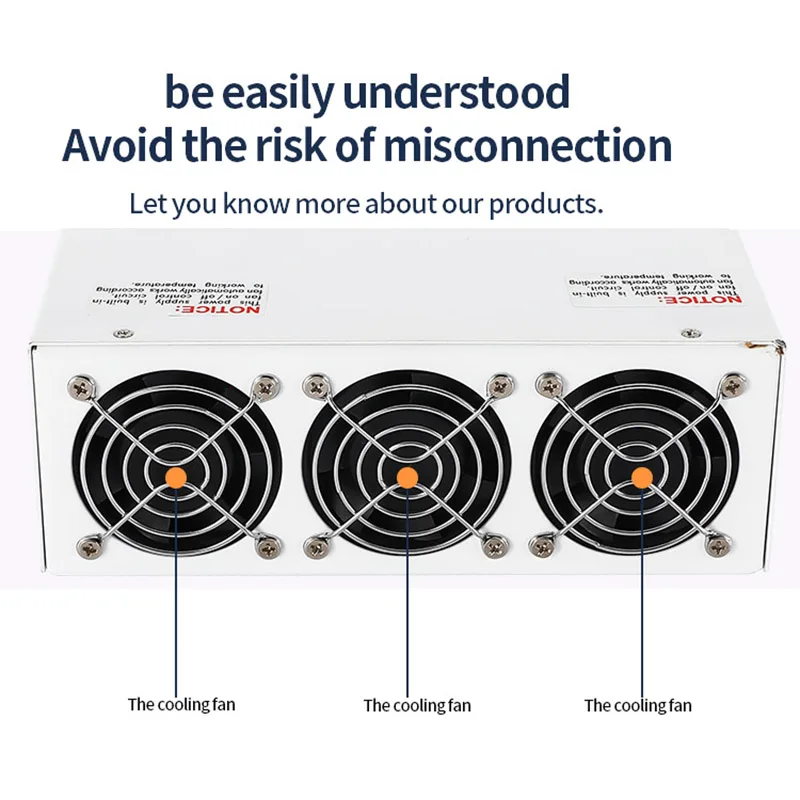

5. An intelligent temperature control fan to help power supply cooling fast

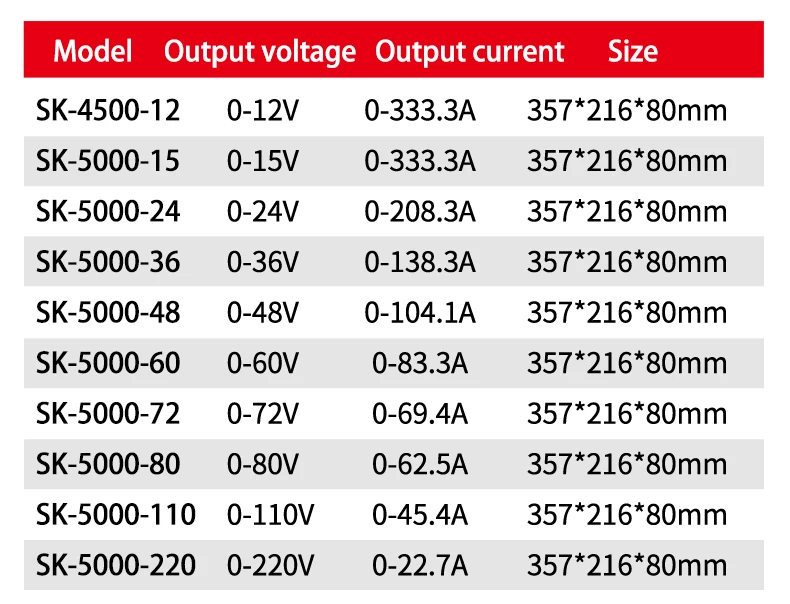

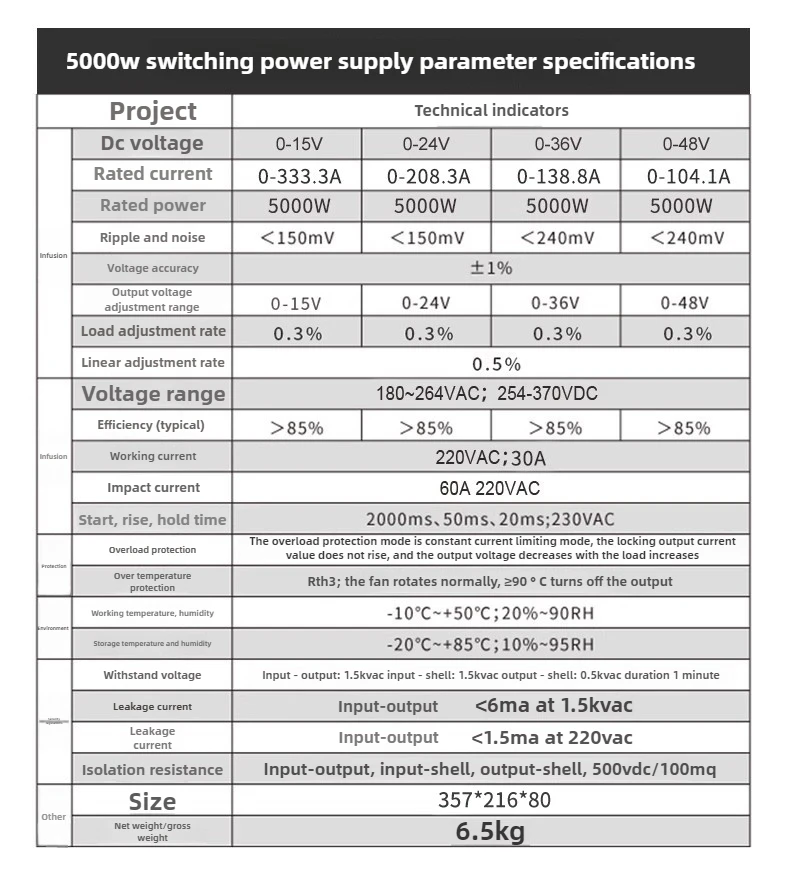

♥ Specifications:

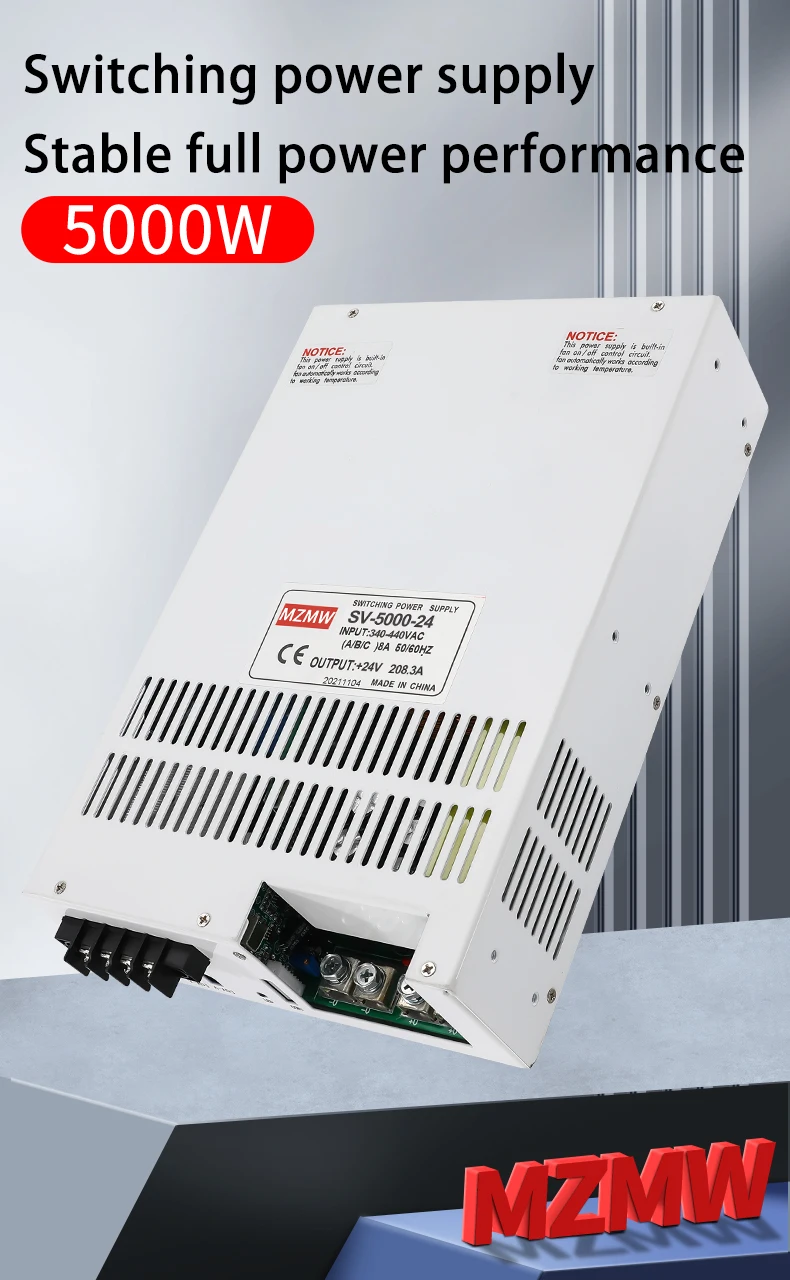

- Power: High Power 5000W
- Working conditions: -10℃ -50℃ relative humidity :< 90%
- Storage conditions: -20℃-85℃ relative humidity :< 80%
- Output voltage:(+-10%)
- Output current:(+-10%)
- Display Accuracy: ±1%±1 digit
- Voltage stabilization: ≤0.2%
- Current stabilization: ≤0.5%
- Load stabilization: ≤0.3%
- Ripples and noises: ≤1 %( RMS)
- SurgeCurrent: 30A/115V, 60A/230V (cold-start)
- Input Leakage Current: <0.7mA/230V

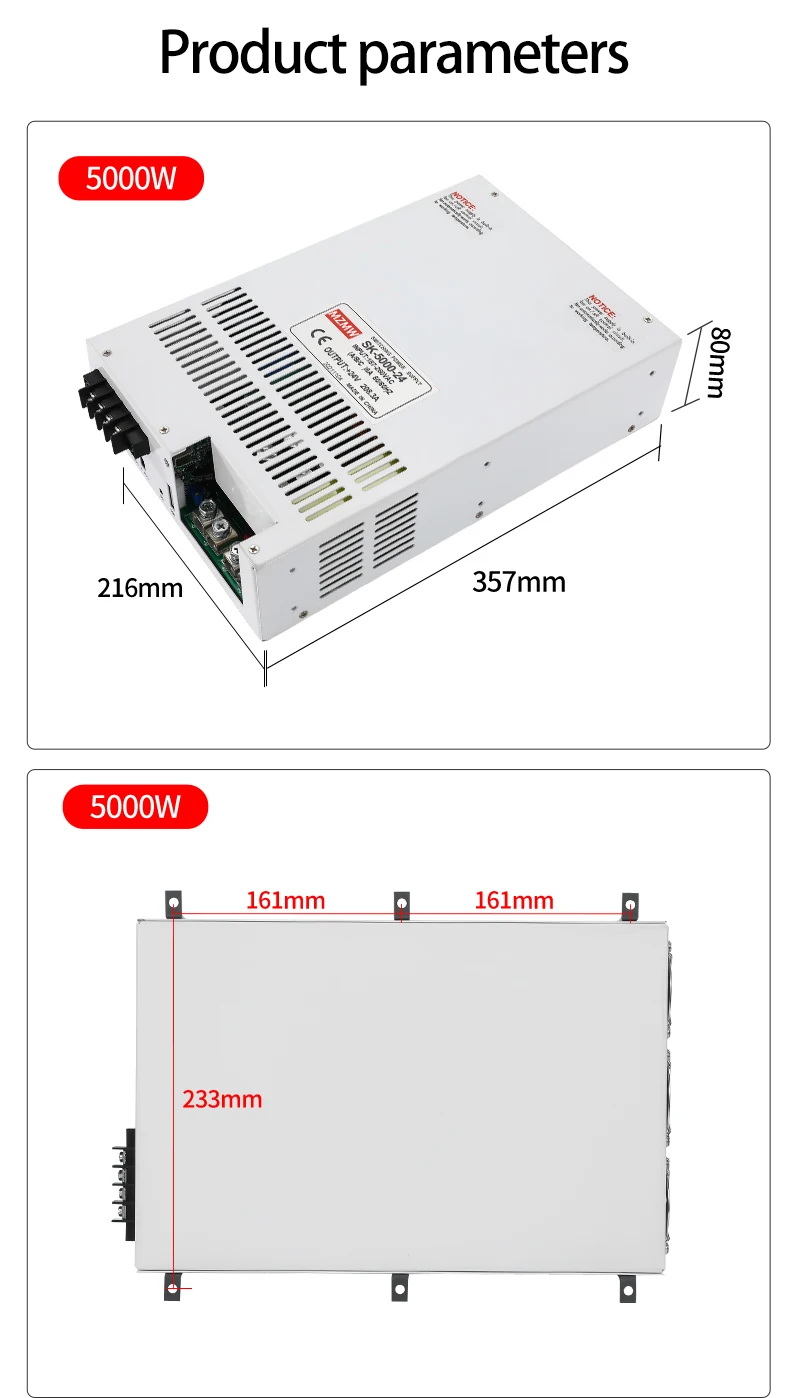

- Size:357*216*80cm
- Efficiency >85%
♥ Origin Quality
Originating from Mainland China, this power supply adheres to high manufacturing standards.

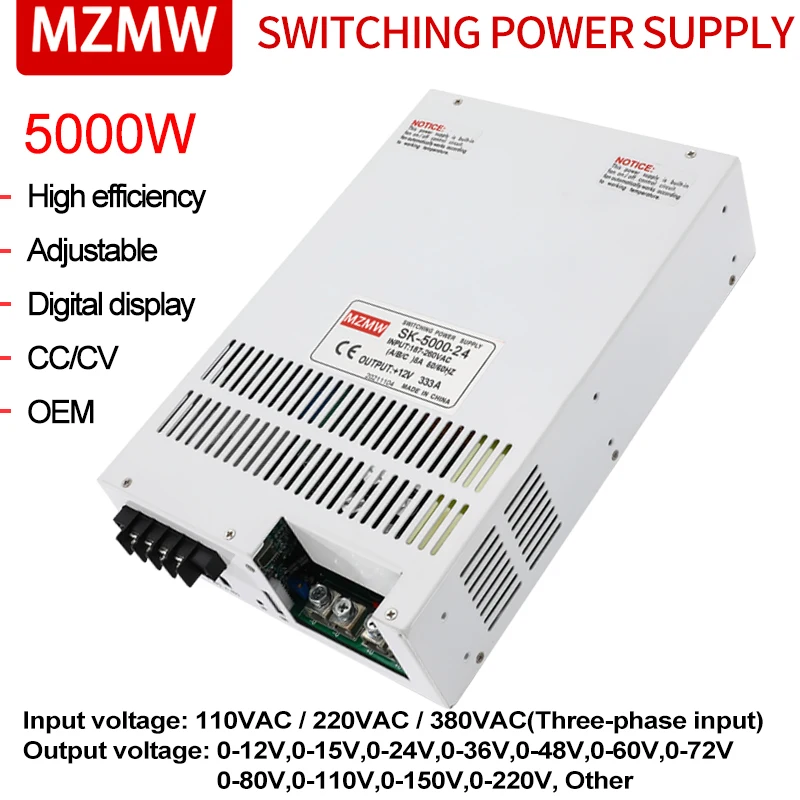

♥ High Output Power
With an output power of >500W, this MZMW switching power supply is ideal for powering heavy-duty equipment.
♥ Adjustable voltage and current
The adjustable voltage and current make it versatile for various applications requiring different power levels.
