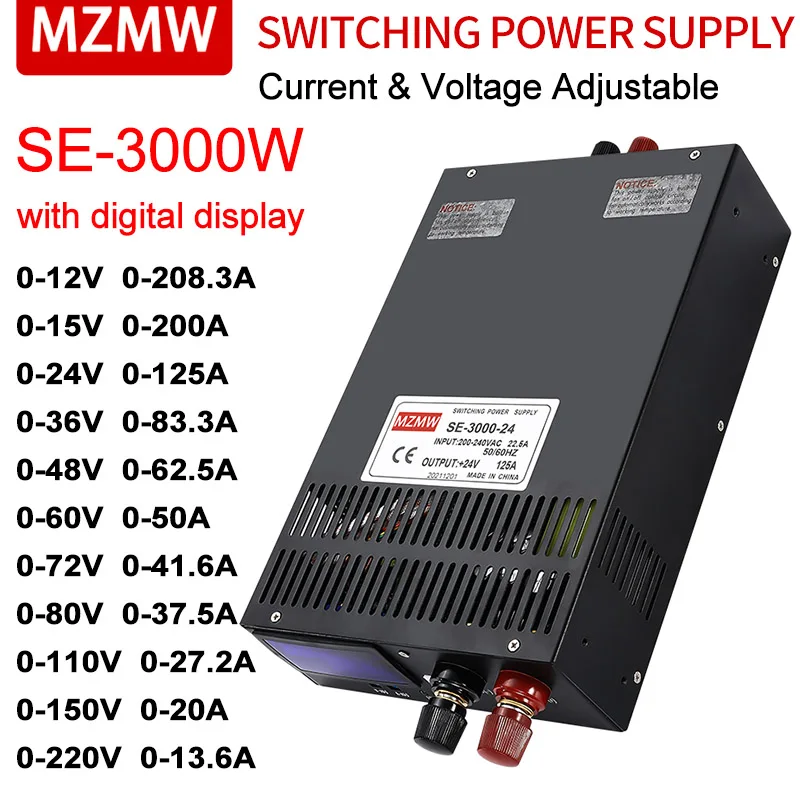

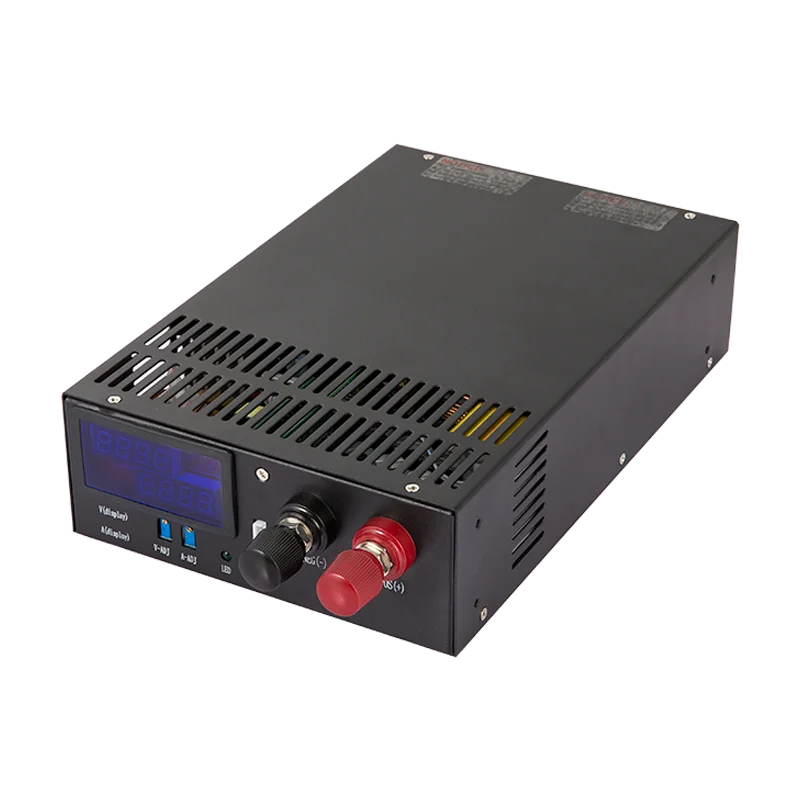

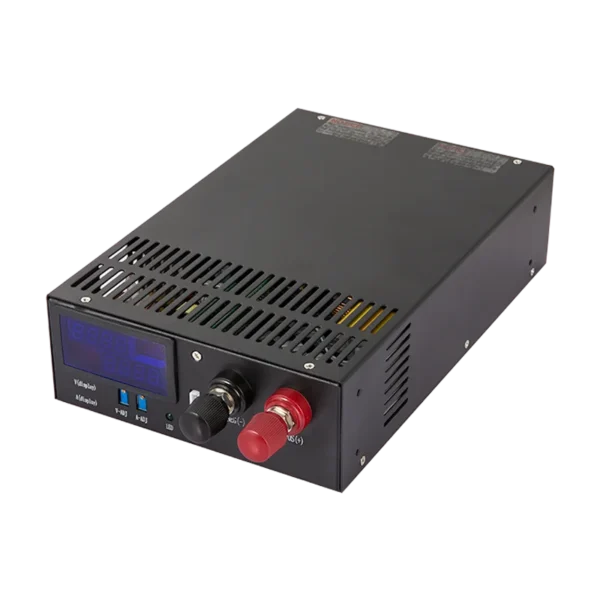

MZMW SE-3000 High-power Switching Power Supply AC110/220V DC 0-24V 36V 48V 60V 80V 90V 110V 220V Digital Display Adjustable SMPS
Original price was: $459.35.$436.38Current price is: $436.38.
- High-concerned chemical: None
- Output Power: 3000W
- is_customized: Yes
- Output Current: 0-200A
- Model Number: SE-3000
- Output Frequency: 47-63Hz
- Brand Name: MZMW
- Output Type: SINGLE
- Certification: CE

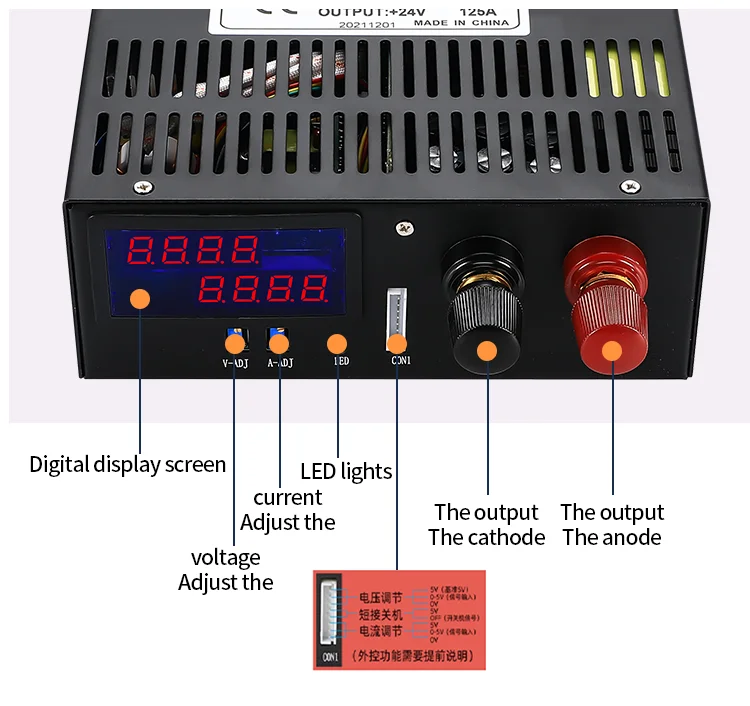

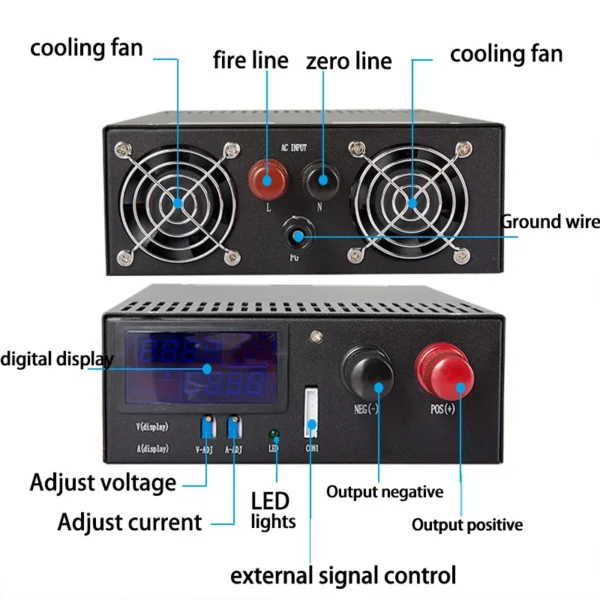

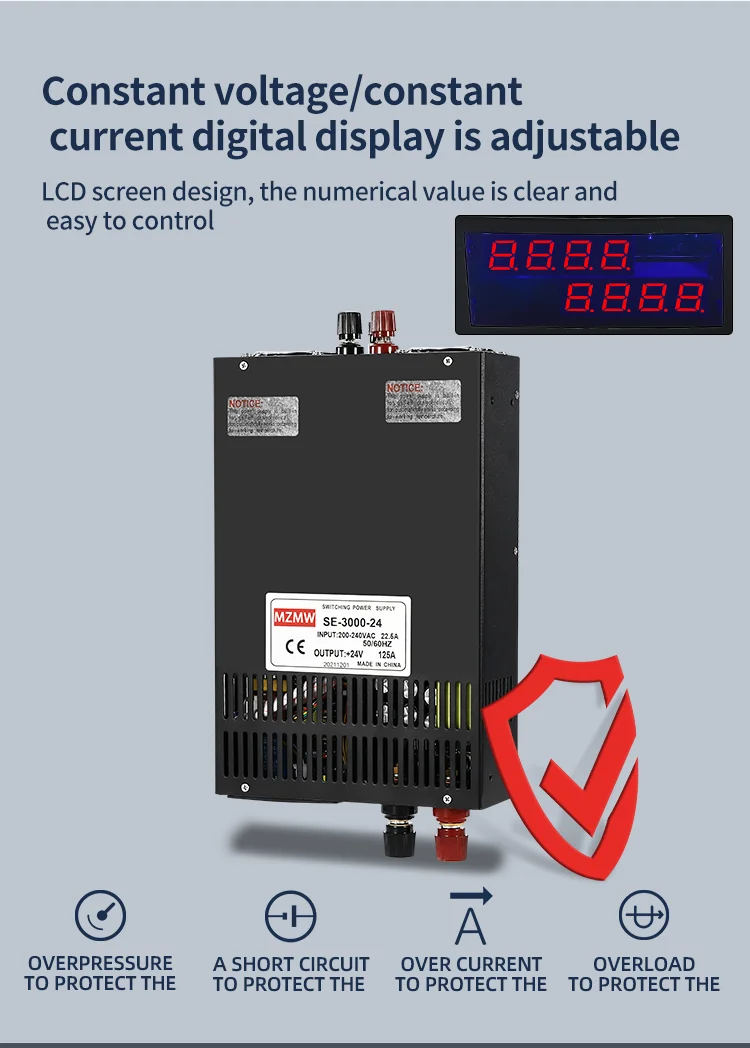

- Feature: Current and voltage are both adjustable; the display shows voltage and current. For the outside sign control, if you need, please advise us. The default is without this function.
- INPUT: 220VAC or 110VAC
|

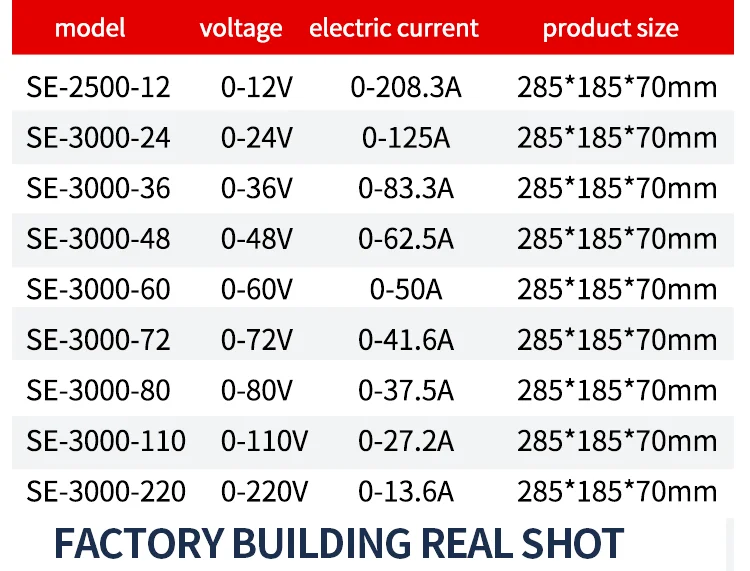

Model |
S-3000–15 |
S-3000–24 |
S-3000–36 |
S-3000–48 |
S-3000–60 |
|
|
Output |
DC Voltage |
15V |
24V |
36V |
48V |
60V |
|
Rated Current |
0-200A |
0-125A |
0-83.3A |
0-62.5A |
0-50A |
|
|
Rated Power |
3000W |
3000W |
3000W |
3000W |
3000W |
|
|
Ripple & Noise (max.) |
150mVp-p |
150mVp-p |
240mVp-p |
240mVp-p |
240mVp-p |
|
|
Voltage Adj. Range |
±10% |
±10% |
±10% |
±10% |
±10% |
|
|
Voltage Tolerance |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Load Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Input |
Voltage Range |
110VAC/180 ~ 264VAC |
||||
|
Frequency Range |
47~63HZ |
|||||
|
Efficiency(Typ.) |
>85% |
>85% |
>85% |
>85% |
>85% |
|
|
AC Current |
220VAC18A |
|||||
|
Inrush Current (max.) |
60A |
|||||
|
Leakage Current |
<1.5mA / 220VAC |
|||||
|
Protection |
Over Load |
Protection type: Constant current limiting mode, the locked output current value does not rise, and the output voltage decreases with the increase of load |
||||
|
Environment |
Working Temperature |
-10 ~ +50°c |
||||
|
Working Humidity |
20~90% RH Non-condensing |
|||||
|
Storage temp.& humidity |
-20~+85°C, 10~95%RH |
|||||
|
Temp. coefficient |
±0.03%/°C (0~50°C) |
|||||
