Description

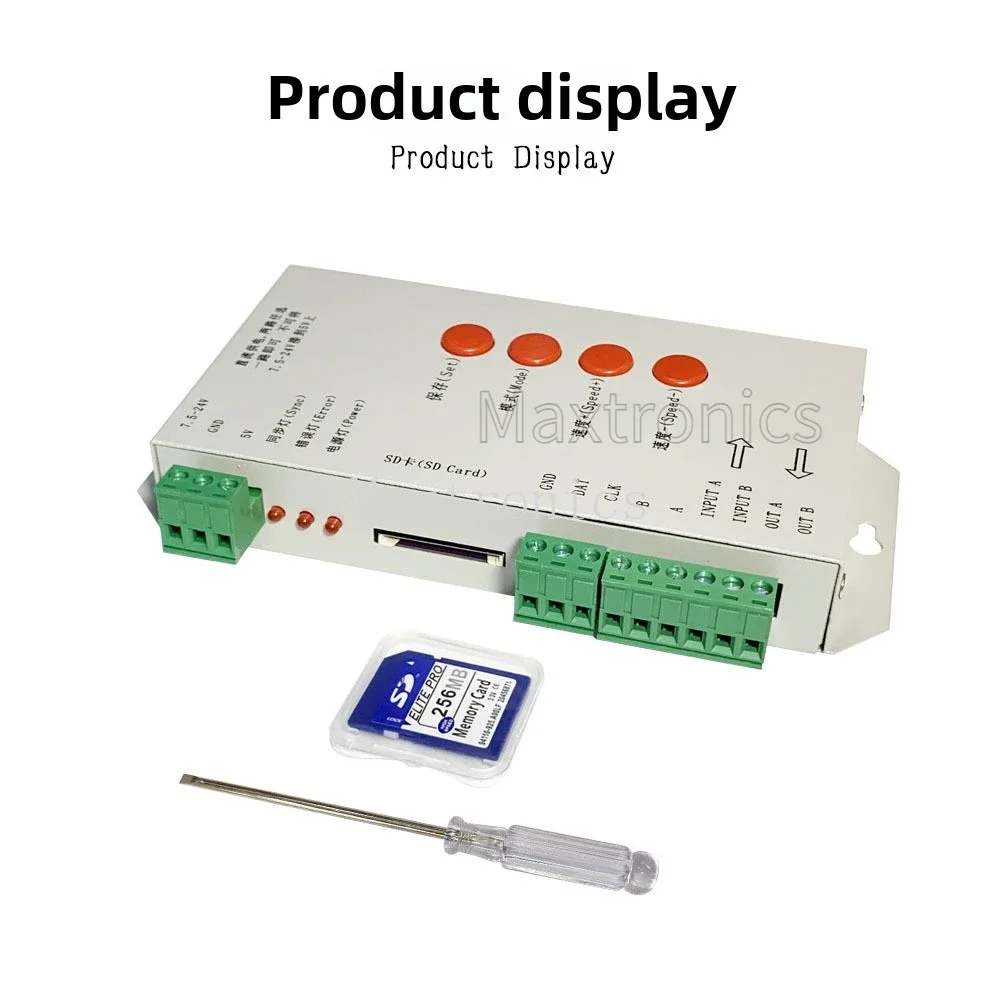

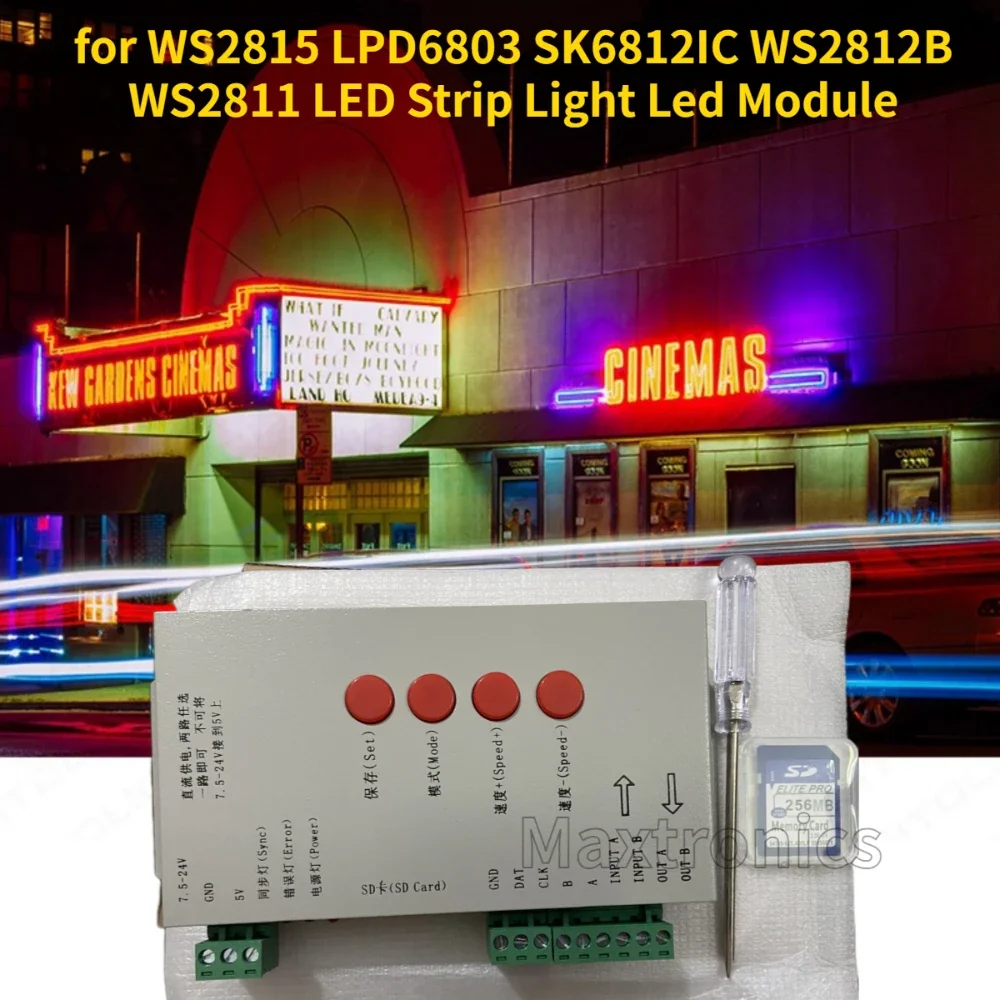

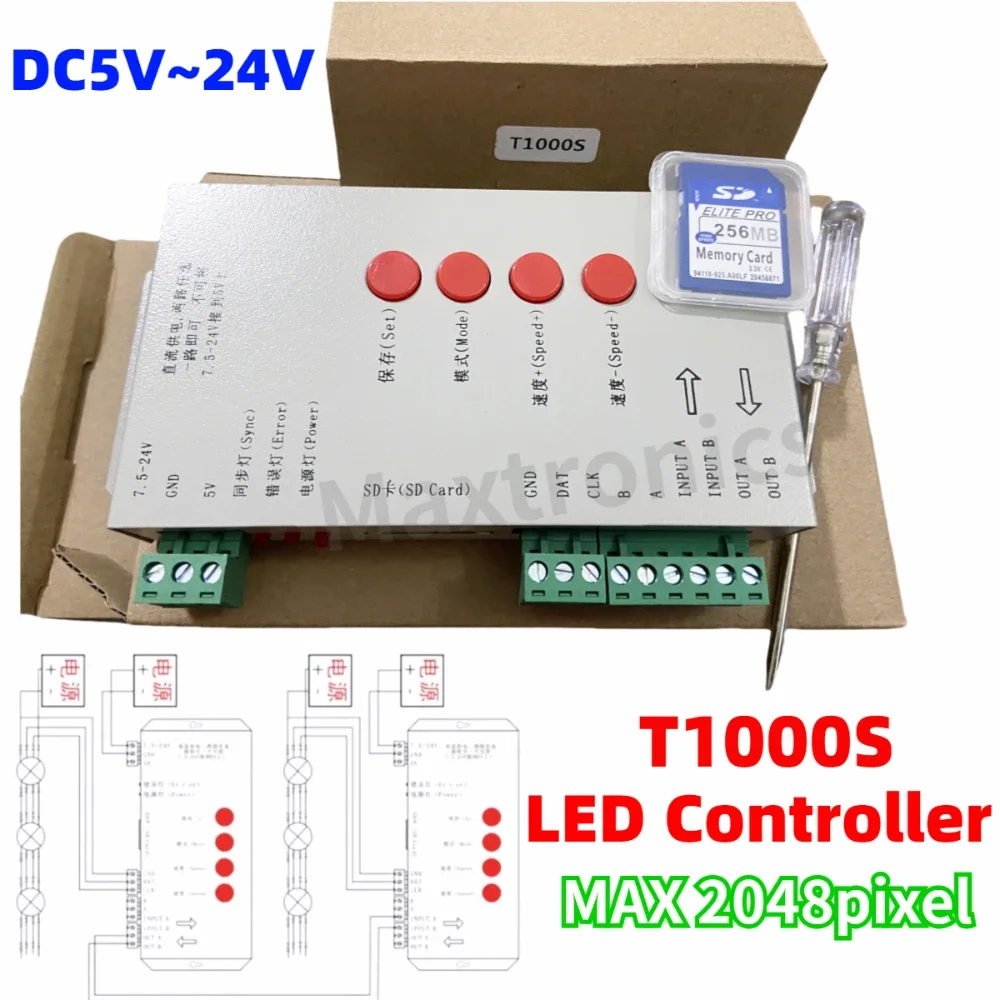

T1000S SD Card RGB LED Controller DC5V~24V Max 2048 Pixels for Led Module WS2815 LPD6803 SK6812IC WS2812B WS2811 LED Strip Light
Description:
- Type: SD card
- Capacity:256MB
- Store file:*.led
Physical parameters:
- Working temperature: -30 to 85 degrees Celsius
- Working voltage: DC5V / DC7.5-24V
- Working power:2W
- Weight:0.3kg
- Size: L165mm×W80mm×H30mm
- Signal port: 3-pin connect port
T-1000S System features:
- 2048 Pixels capacity.
- 256 Gray, Gamma correction processing software.
- Support the rules and special-shaped handles.
- The controller, a port output, may bring 1024/2048 light.
- Offline control, play back content stored in the SD card
- T-1000C stores a maximum of 16 documents
NOTE:
- When the T1000S controller load is less than 512 pixels, the frame rate can reach 30fps.
- When T-1000s control more than 512 pixels, the frame rate will slow down automatically.
Only work with LEDEDIT 2014 Software!
Package:
- 1x T1000S controller
- 1xSD Card(256MB)

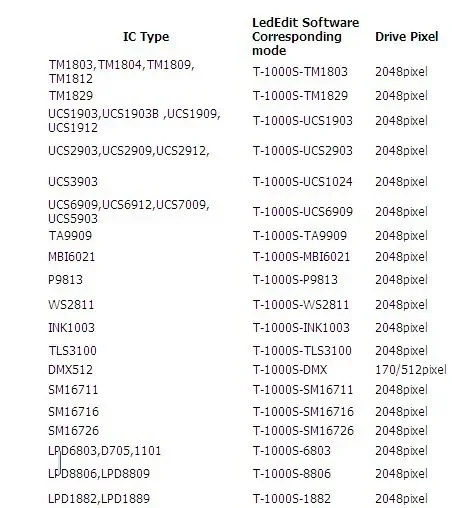

Support IC (one IC symbolizes a pixel point )

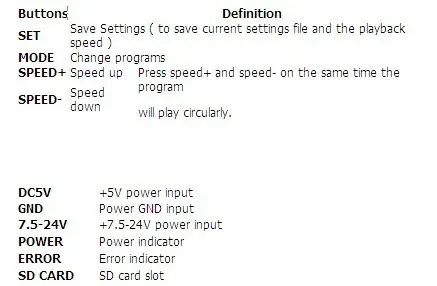

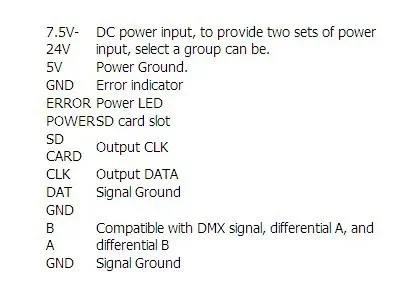

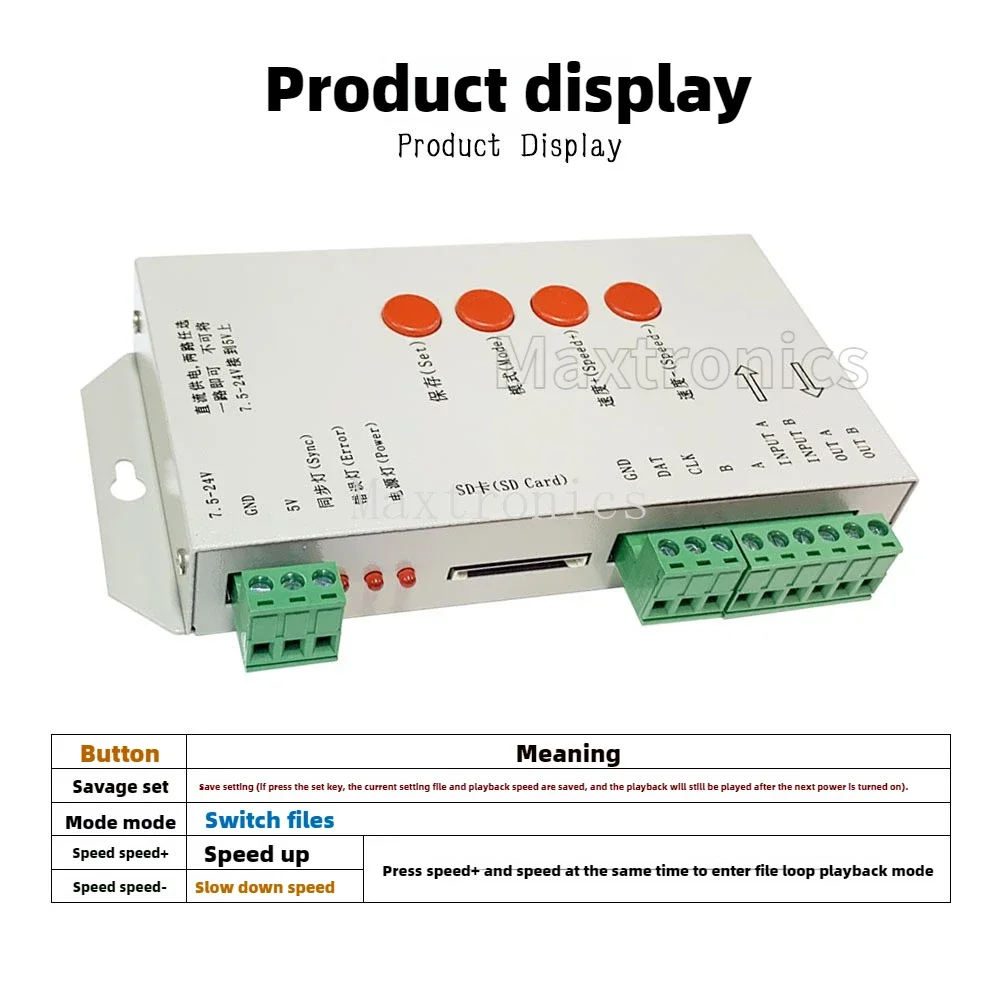

Definition of buttons

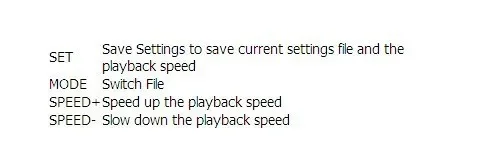

Regulatory function button:

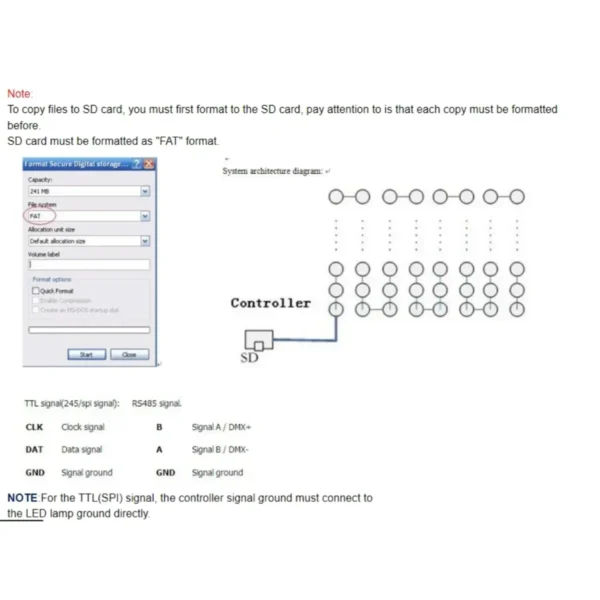

Note:

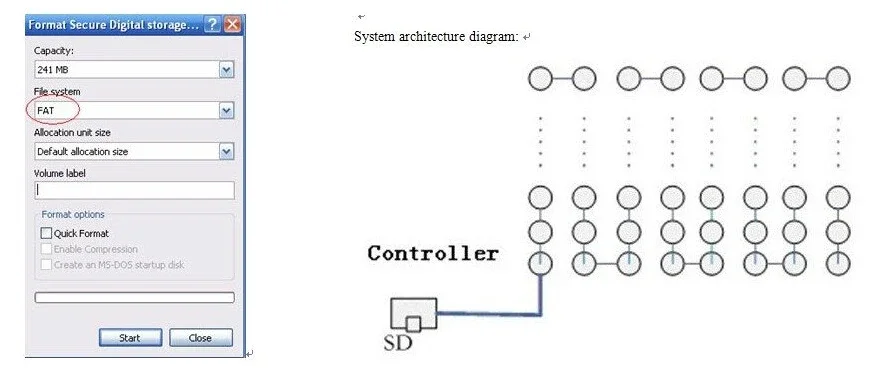

To copy files to an SD card, you must first format the SD card, and pay attention to the fact that each copy must be formatted before.
The SD card must be formatted in “FAT” format.

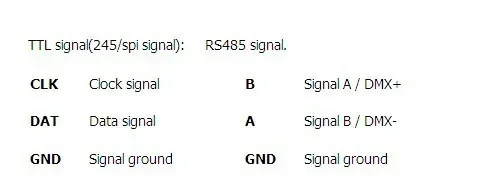

NOTE: For the TTL(SPI) signal, the controller signal ground must connect to
The LED lamp grounded directly.
