WS2811 WS2812B WS2815 Artnet Pixel Controller DMX512 Offline Player 12X1024 Pixels

The GC-6612Pro is the ideal solution for controlling advanced LED lighting systems, offering support for DMX512, SPI, and a wide range of driver ICs such as TM1812, WS2811, UCS2903, UCS9812, SM17512, and others. The device is powered by an FPGA processor, delivering superior parallel data processing capabilities that ensure high load management, fast frame rates, high grayscale, and precise synchronization.

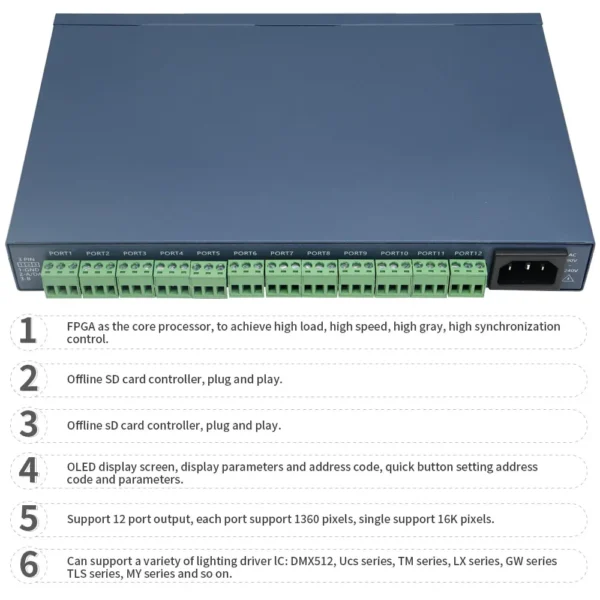

Key Features:

• Powerful FPGA Processor: Ensures high-quality control for speed, load, grayscale, and synchronization.

• Offline SD Card Control: Plug-and-play functionality via SD card.

• OLED Display: Displays parameters and address code, with quick adjustment options for address and parameters.

• 12 Output Ports: Each port supports 1024 pixels, with the device handling up to 16,000 pixels per station.

• Wide IC Support: Compatible with DMX512, UCS series, TM series, LX series, GW series, TLS series, MY series, and others.

• Output Signal Compatibility: Supports both RS485 and SPI (TTL) signal outputs.

• RGBW and Power Control: Offers options for energy-saving mode or brightness enhancement.

• 65536 Gray Levels: Built-in user-defined gamma correction curve for precise control.

• Supports Various SD Card Capacities: From 128MB to 32GB, and can store up to 64 scene files.

• External DMX512 Triggering: Allows integration with external DMX512 controllers or intelligent lighting control boxes.

• MIX and Grouping Support: Via external DMX512 controllers.

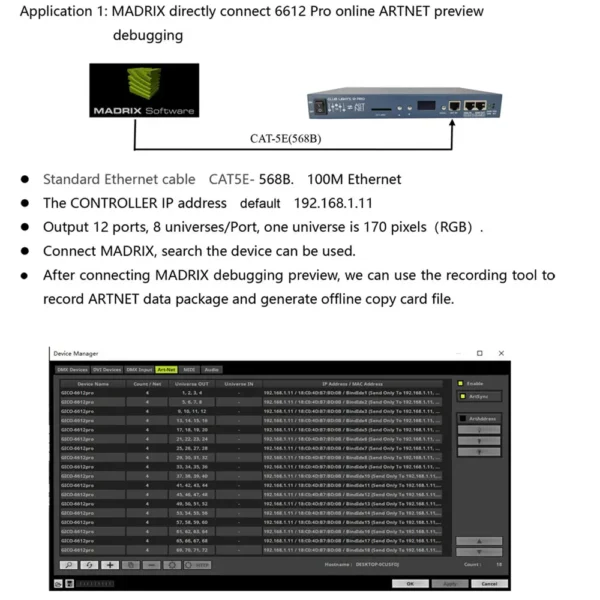

• ARTNET and LEDview Preview: Allows for online preview, scene recording, and SD scene file generation.

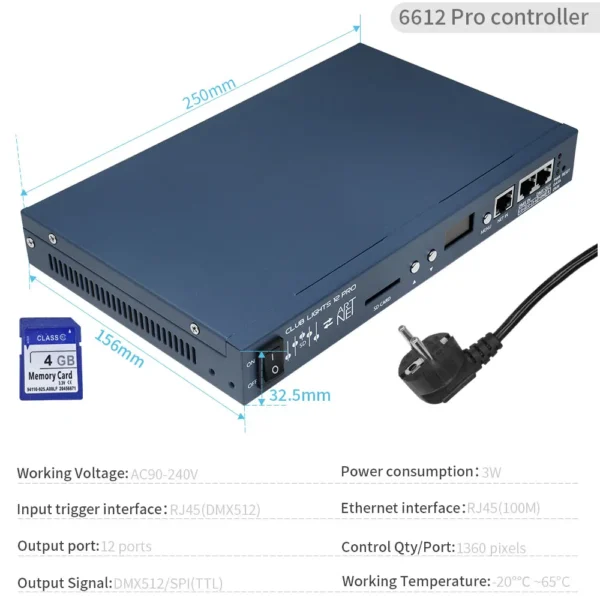

Technical Specifications:

• Operating Voltage: AC90-240V

• Power Consumption: 3W

• Input Trigger Interface: RJ45 (DMX512)

• Ethernet Interface: RJ45 (100M)

• Output Ports: 12 ports

• Control Quantity/Port: 1024 pixels

• Output Signal: DMX512 / SPI (TTL)

• Operating Temperature: -20°C to 65°C

• Dimensions: L250xW175xH35 mm

• Weight: 1.3 kg

Applications:
The GC-6612Pro is widely used in advanced lighting projects, including KTV, bars, office buildings, hotels, shop signs, and other LED lighting applications.
