Description
MZMW 100W UPS charger Switching Power Supply 12V 24V AC to DC 13.8V 2A 27.6V 1A Uninterruptible Power SMPS PSC-100-12 PSC-100-24
To ensure the lifetime of the power supply, pls don't use full load when you use it. We recommend that the power be 80% of the rated power. For example: the label of the power supply is 500W, use power used should be: 500W*80%=400W
Feature
1. The international common AC input voltage range is switched by switching
2. Small size, light weight, high efficiency, height only 30mm
3. Protection characteristics: short circuit/overload
4. Battery low voltage protection
5. With power on / charging / mains display (light-emitting diode)
6.100% full load burn-in test
7. Power start LED indicator
8. AC to battery power supply, no switching time

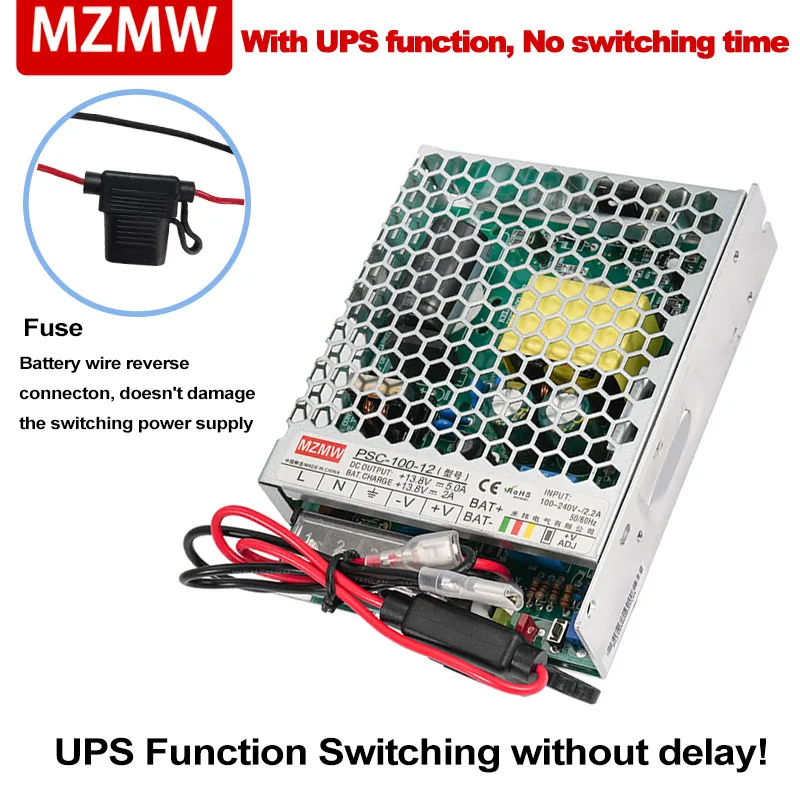

9. Battery charging terminal with a fuse, battery reverse connection will not damage the switching power supply

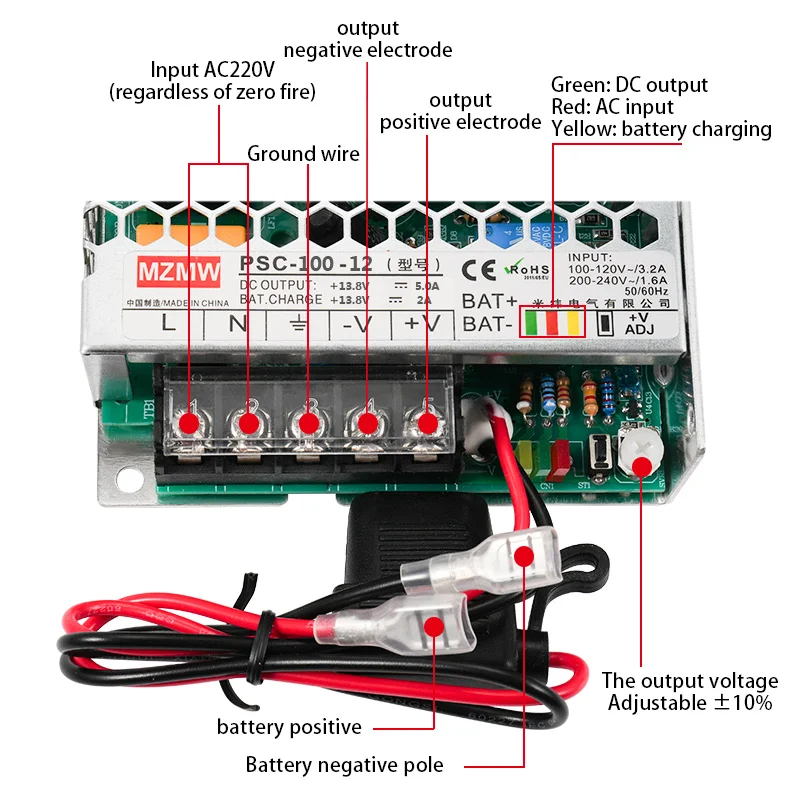

CN1 External Indicator Description
GREEN: DC output
RED: AC input
YELLOW: Battery charging
