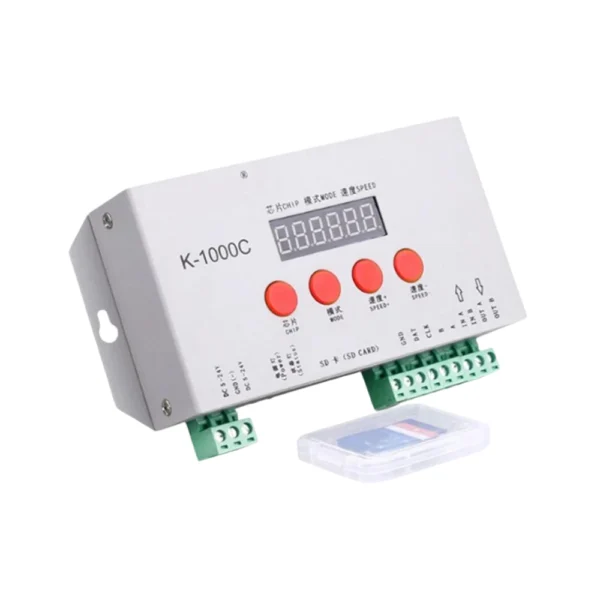

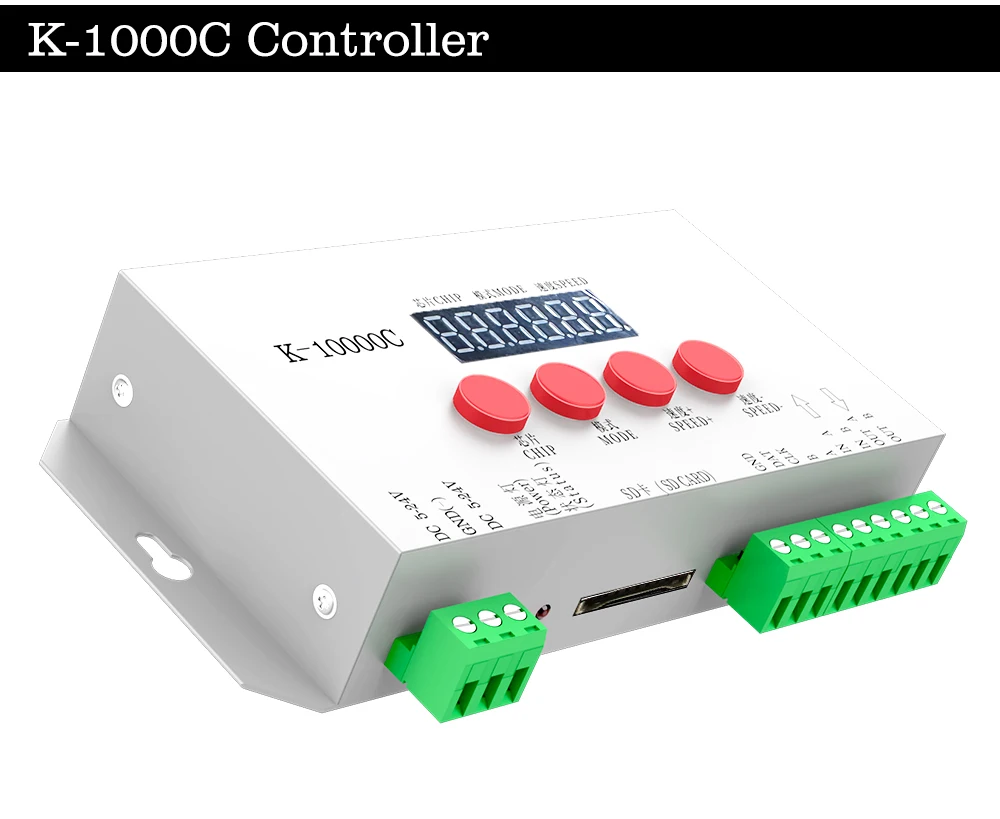

K-1000C LED Controller, 2048 Pixel LED Program Controller DC5-24V

K-1000C Pixel LED Controller – Advanced Programmable Lighting Control

Take full control of your LED lighting projects with the K-1000C Pixel Program Controller, a powerful and reliable solution designed for dynamic lighting effects, large-scale installations, and creative displays.

✨ Key Features

• 🎨 High Gray Scale Performance
  Supports 32–65,536 levels of gray, delivering ultra-smooth transitions and precise color rendering with built-in gamma correction.
• 💡 Flexible Control Modes
  Compatible with point, line, area, rule-based, and custom-shaped lighting effects, making it ideal for creative and complex lighting designs.
• 🔌 High Pixel Capacity
  A single output port supports up to 2048 pixels, perfect for medium to large LED setups.

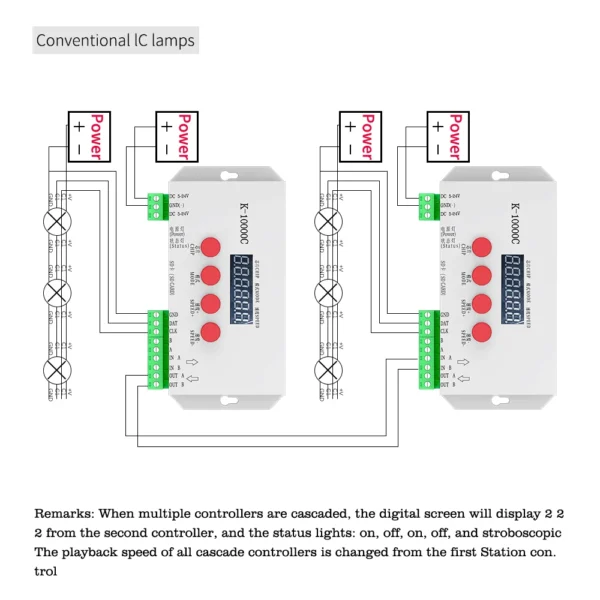

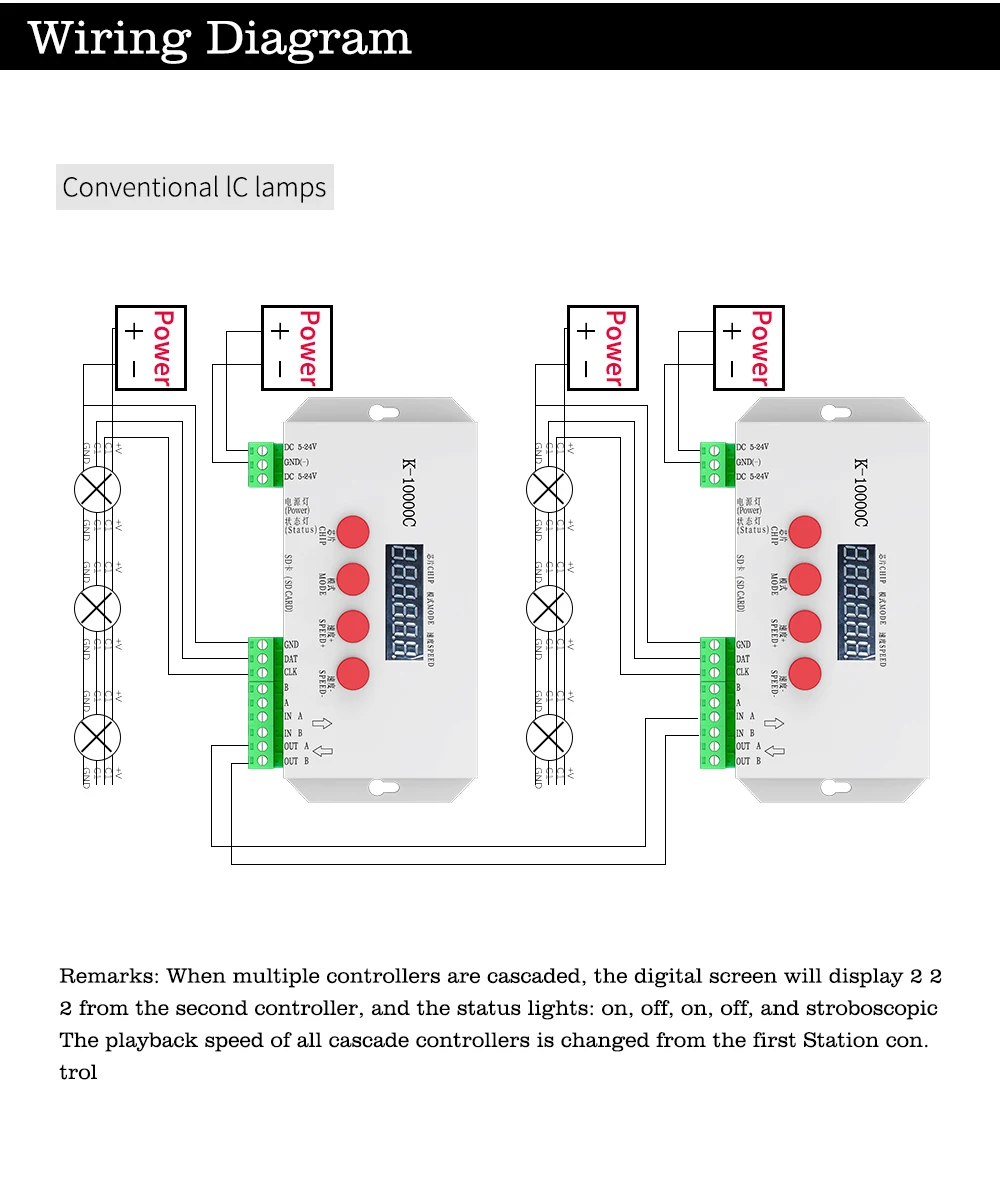

• 🔗 Cascading Support
  Multiple controllers can be connected and synchronized seamlessly for large-scale projects.
• ⚙️ Wide Compatibility

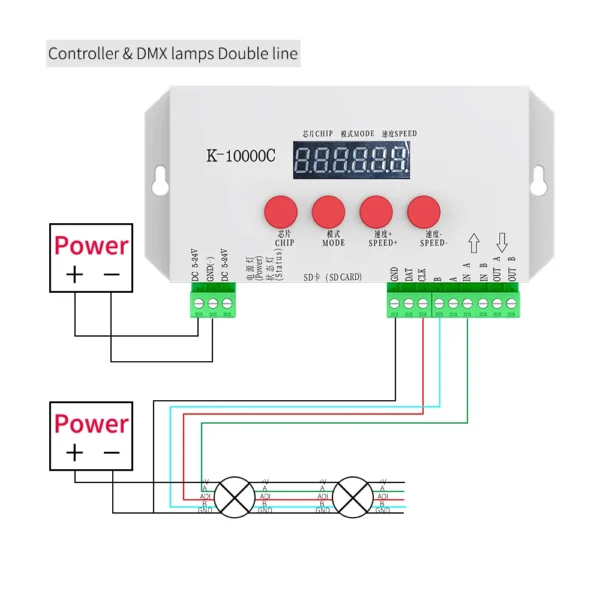

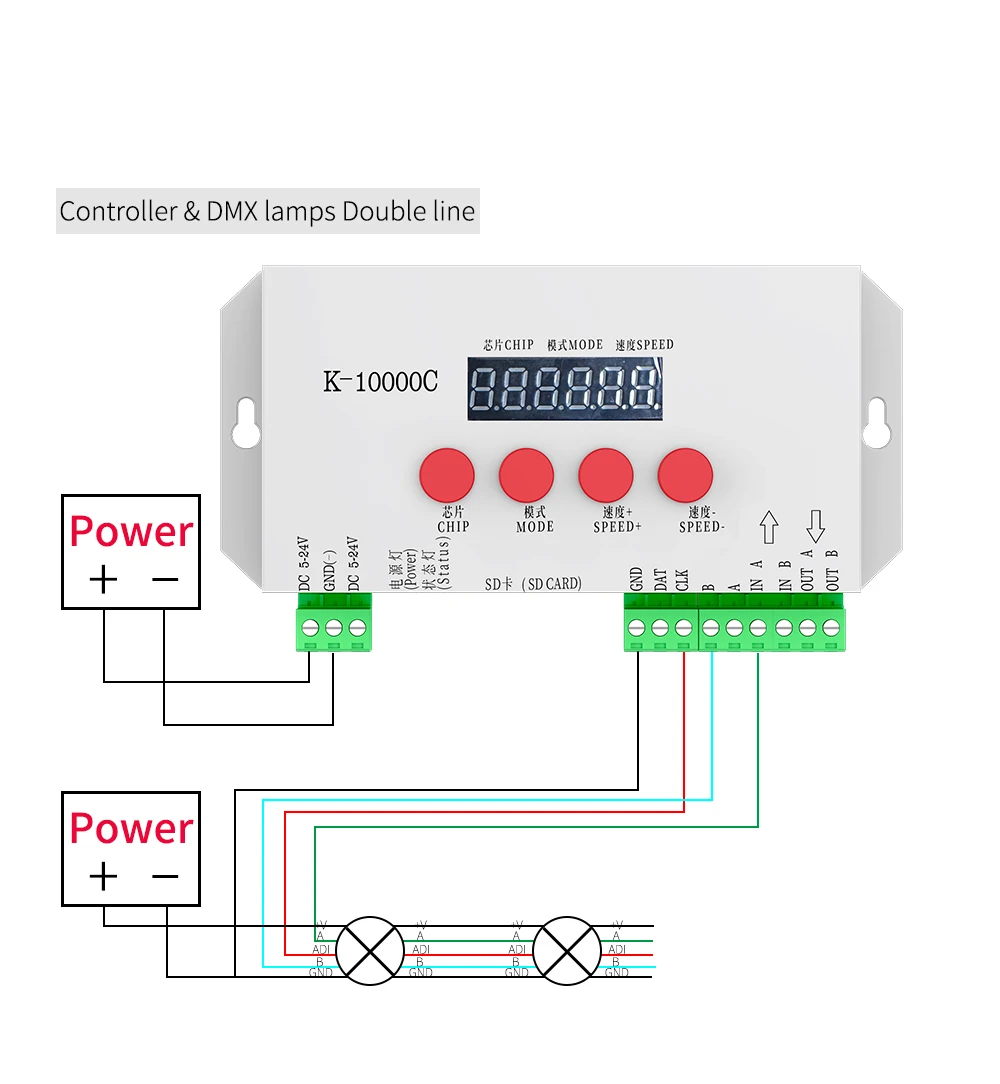

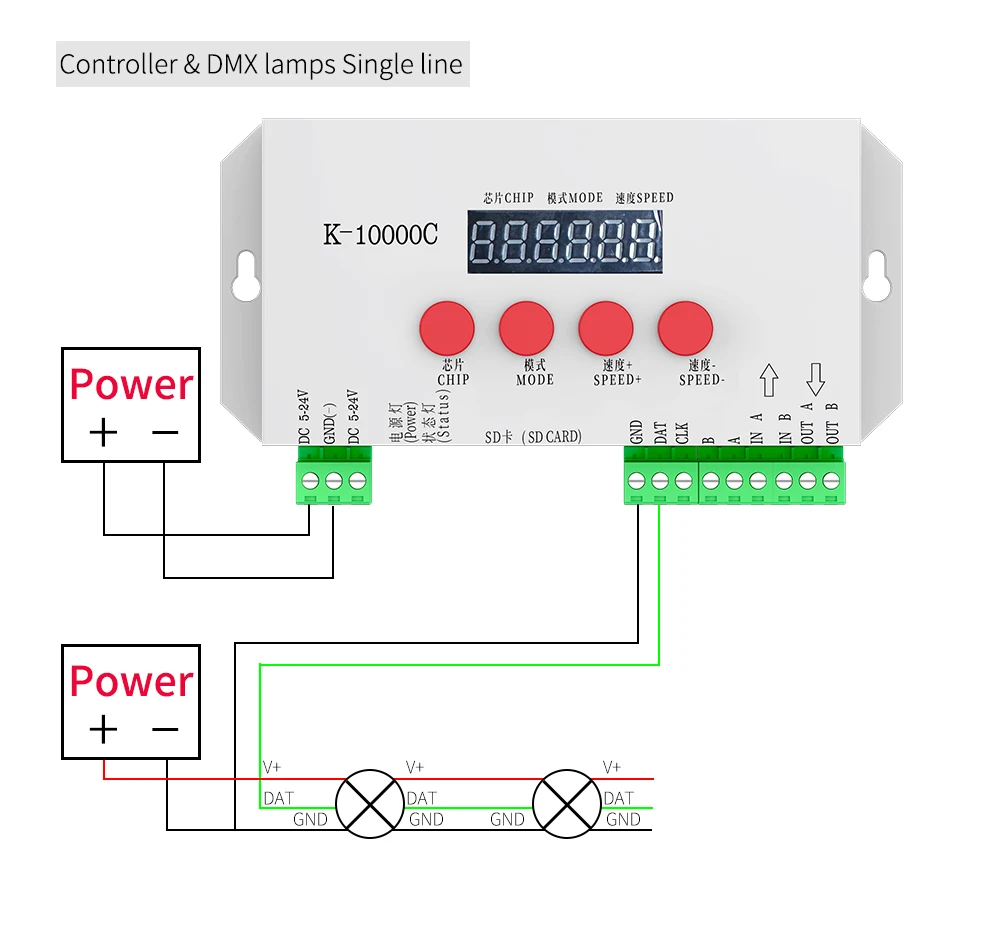

  Works with both single-wire and two-wire LED chips, ensuring broad compatibility.

💾 Storage & Media

• Memory Card Type: SD Card
• Supported Capacity: 128MB – 32GB
• File System: FAT / FAT32 only

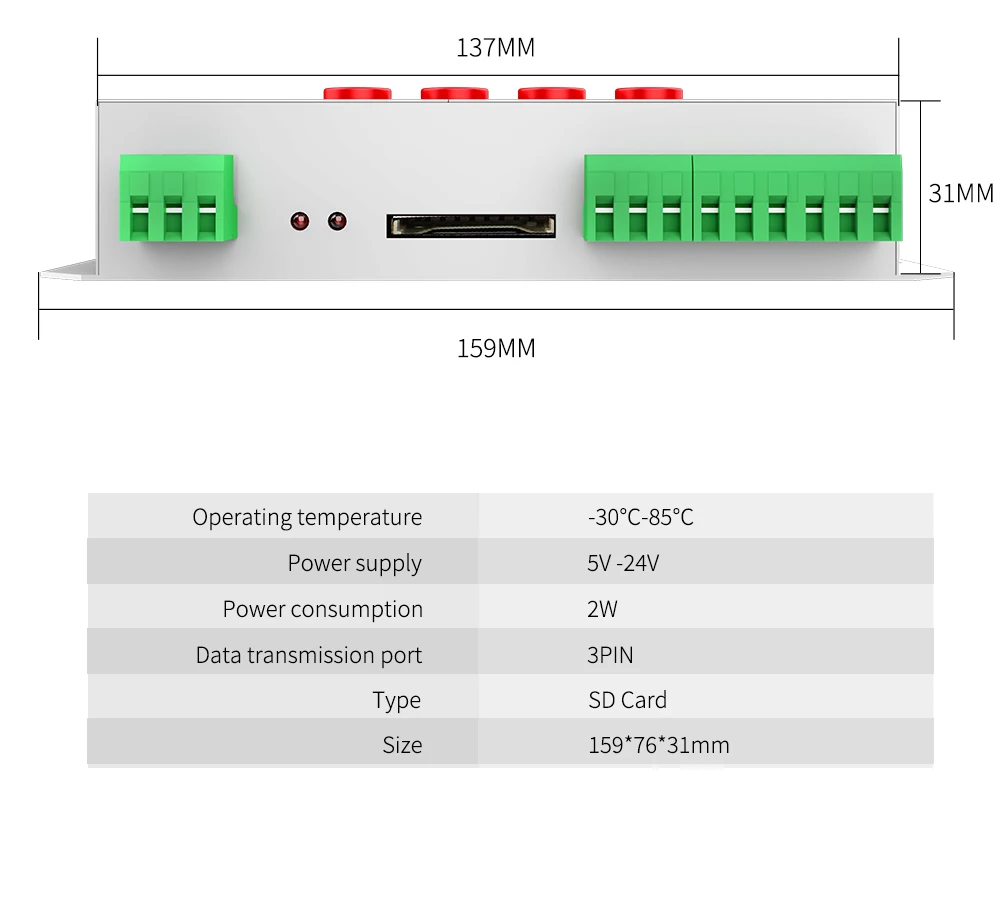

📐 Physical Specifications

• Dimensions: 159 × 89 × 24 mm
• Weight: 0.2 kg
• Material: Metal
• Color: White

⚡ Electrical Specifications

• Operating Voltage: DC 5V / DC 7.5–24V
• Power Consumption: 3W
• Operating Temperature: -40°C to 85°C

🧠 Smart Compatibility Notes

• For RGBW (4-channel) lighting, use K-1000-RGBW controller
• For single-channel lighting, use K-1000-W (each channel = one pixel, output effect is white)

⚠️ Important Precautions

• Always format the SD card before copying files
• Use only FAT or FAT32 format
• Do NOT hot swap the SD card (disconnect power before inserting/removing)

📦 Package Includes

• 1 × K-1000C Pixel Program Controller
• 1 × 256MB Memory Card

📝 Notes

• Actual product color may vary slightly due to lighting and screen differences
• Measurement tolerance: ±1–3 cm
