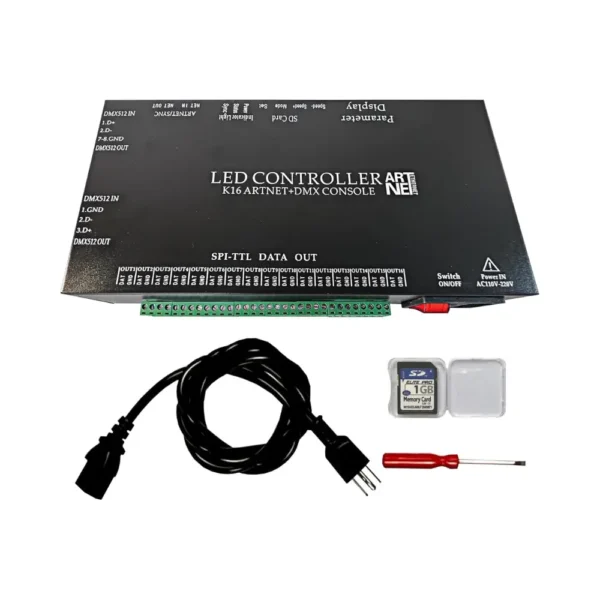

K16 ARTNET + DMX Console LED Controller

The K16 LED Controller is a powerful and flexible solution designed for large-scale LED lighting systems. Combining Art-Net networking, DMX console compatibility, and offline SD card playback, it delivers seamless control, high-speed data transmission, and exceptional performance for demanding lighting environments.

Working Performance

The K16 is engineered for efficiency, stability, and ease of use:

• Seamless Mode Switching: Easily switch between DMX, online (Art-Net), and offline (SD card) modes
• Offline Playback: Supports up to 100 programmable effects stored on an SD card with smooth switching
• Real-Time Online Control: Remove the SD card to activate Art-Net mode and directly run effects via Madrix and other software
• High-Speed Network Transmission:
  • Based on TCP/IP protocol
  • Supports 10/100/Gigabit adaptive Ethernet
  • Stable and fast data transfer
• Long-Distance Connectivity:
  • Up to 100 meters via Cat5e cable
  • Extended distance using network switches or fiber optics
• User-Friendly Interface:
  • 4-digit display + 4-button control panel for quick configuration

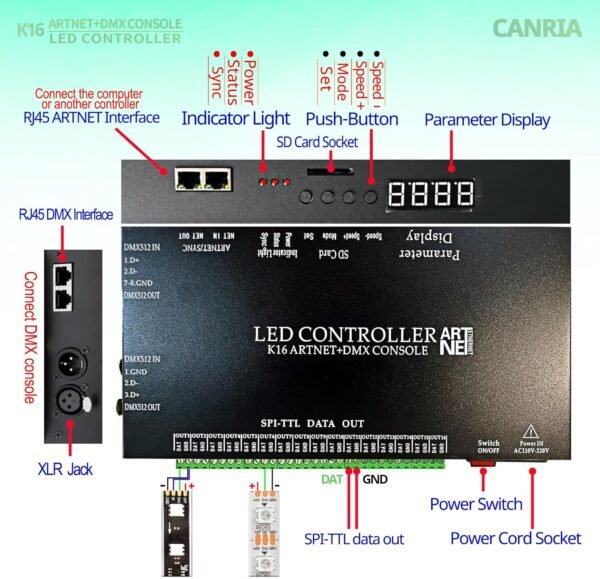

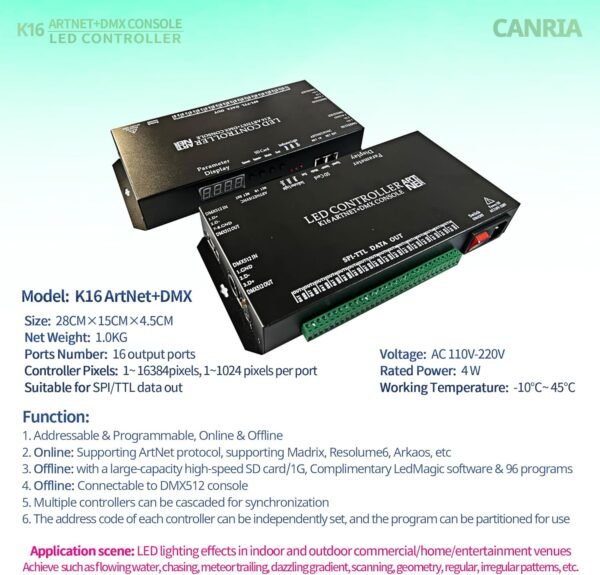

Technical Specifications

• Power Input: AC110–220V (Wide Voltage)
• Power Consumption: 4W
• Output Ports: 16 ports

Pixel Capacity:

• Offline Mode: 1024 ICs per port (Total: 16,384 ICs)
• Online Mode: 680 ICs per port (Total: 10,880 ICs)

Performance:

• Grayscale Levels: 32 – 65,536 (High precision dimming)
• Protocol Support: SPI / TTL, Art-Net, TCP/IP

Software Compatibility:

• Fully compatible with Madrix, Resolume 6, and Arkaos
• Supports real-time editing and playback
• Dedicated LedMagic software for offline programming (requires antivirus whitelist)

Advanced Programming & Effects Creation

The K16 supports professional-level content creation and control:

• Real-time effect editing via Madrix / Resolume / Arkaos
• Offline programming using LedMagic software
• Supports:
  • Video import
  • Text editing
  • Batch effect import
  • Independent effect creation

Simple Workflow:
Create Project → Select K-16000-ALL → Import layout (DXF or manual) → Apply effects → Preview → Export → Save to SD card (.led file)

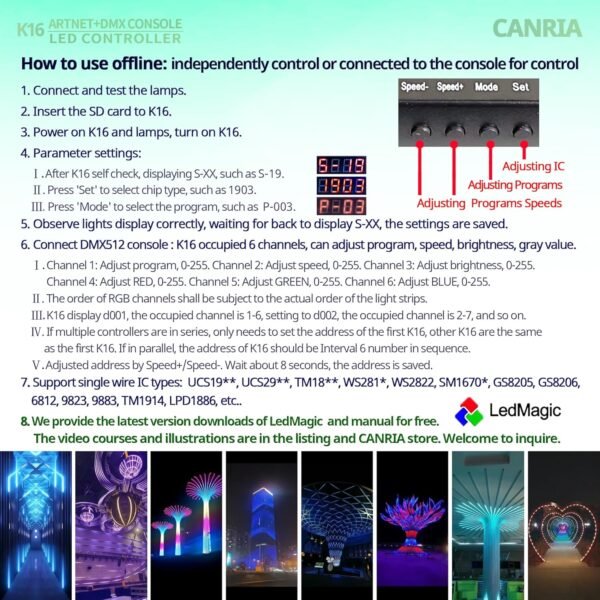

Offline Operation (Standalone Mode)

Operate without a computer or integrate with a DMX console:

1. Connect LED fixtures and insert SD card
2. Power on the controller
3. Automatic system check displays S-XX
4. Select chip type (e.g., 1903)
5. Choose program (P-XX)
6. Settings auto-save after confirmation

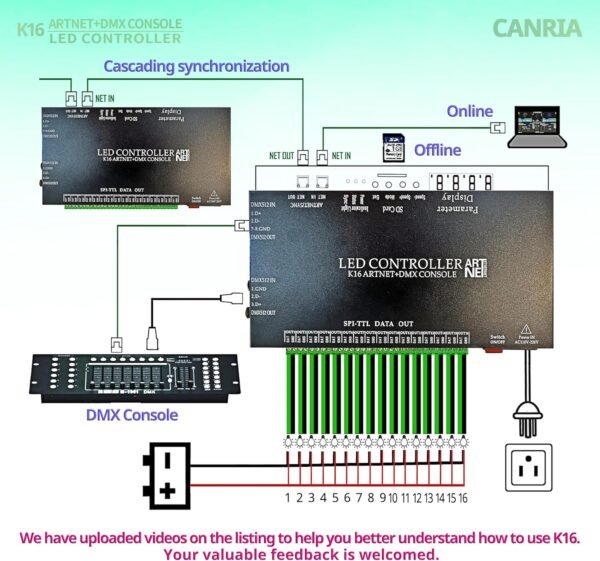

Multi-Controller Setup:

• Series Connection: Only configure the first controller
• Parallel Connection: Set address intervals (e.g., d001, d007…)
• Address auto-saves after ~8 seconds

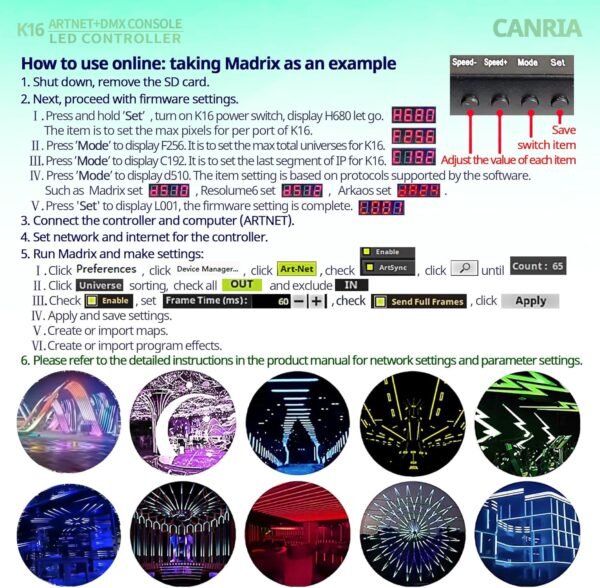

Online Operation (Art-Net Mode)

Example setup using Madrix:

1. Remove SD card and power on
2. Configure controller parameters:
   • Pixel capacity per port
   • Total universes
   • IP address
   • Protocol settings (Madrix / Resolume / Arkaos compatible)
3. Connect controller to computer via network
4. Configure network settings
5. Run software and control lighting in real-time

Professional Applications

The K16 is ideal for:

• Stage and live event lighting
• LED screens and media facades
• Clubs and entertainment venues
• Architectural lighting projects
• Creative installations and visual art

Why Choose K16?

• Multi-mode flexibility (DMX + Art-Net + Offline)
• Massive pixel handling capacity
• High-speed, stable network performance
• Professional software integration
• Easy setup and operation
• Scalable for large installations
